VXB
HC204-12 Insert de roulement - collier excentrique 3/4 inch
Prix régulier
$29.99
Prix de vente$60.00vous économisez 30,01
|

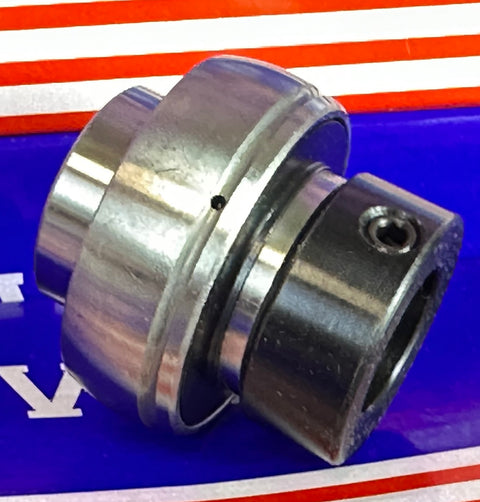

HC204-12 Bearing Insert Eccentric Locking Collar 3/4" Inch Inner Diameter |
HC204-12 Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

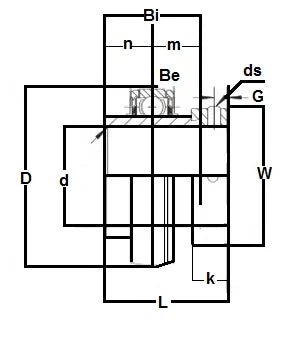

| Dimensions Inches | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-ThreadThread) |
| 1-55/64" | 1-23/32" | 1-25/64" | 19/32" | 0.059" | 21/32" | 21/32" | 1-1/4" | 17/32" | 13/64" | 1/4-28x1/4 |
