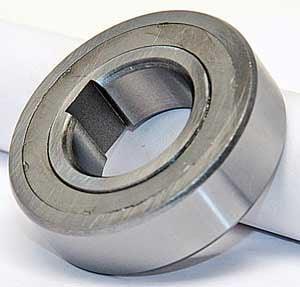

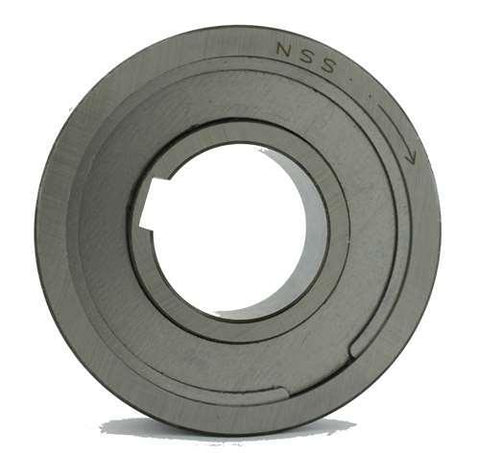

AS40 One-Way 40x80x18 Bearing Support Required Backstop Clutch

Prix régulier $119.99 Prix de vente$149.99vous économisez 30,00
SKU: Kit18231_1
UPC: 00193019261347
Item: AS40 Clutch
Type: One Way Clutch
Applications: Overrunning, Indexing, Backstopping
non-bearing supported, External 6205 Bearing Support Required
Dimensions: 40mm x 80mm x 18mm/metric
Embrayage à sens unique AS40
Embrayage à sens unique


AS40 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, you will need one of the 6205 beairngs to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. AS40 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • Embrayage AS40
  • Pochette à sens unique
  • Applications : Débordement, indexation, backstopping
  • sans palier, support de palier externe 6205 requis
  • Dimensions: 40mm x 80mm x 18mm (métrique)
  • Inner Diameter: 40mm
  • Outer Diameter: 80mm
  • Width: 18mm
  • Couple : 148 TKN
  • Couple Max : 10 Tr
  • Dépassement de la course intérieure : 1 200 RPM
  • Dépassement de la course extérieure : 1 800 RPM
  • Quantity: Une pochette

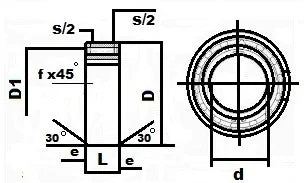

Dimensionmm
d D D1 L s e f
40 80 72 18 2.5 0.8 1
