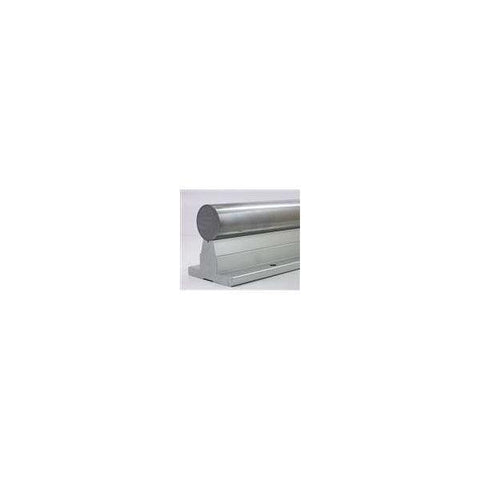

12mm Rail Guideway System With 1397mm Long Rail And Precise Carriage High Rigidity Linear Guide Kit For Smooth Accurate Travel And Easy Mounting Using Standard 1x100 Mounting Pattern
✔️ 12 mm rail, 1,397 mm (55.0 in) length, single-rail pack, M4 mounting
The 12mm Rail Guideway System is a precision straight-line motion solution designed for compact automation, CNC, and robotics projects. It delivers smooth, predictable travel and can be used to build small-axis stages, pick-and-place rigs, and lightweight conveyor guides where accurate, reliable linear motion matters.
✅ Rail diameter: 12 mm (0.472 in)
✅ Rail height: 20.46 mm (0.806 in)
✅ Mounting width: 17 mm (0.669 in)
✅ Rail width (overall): 34 mm (1.339 in)
✅ Rail length: 1,397 mm (55.0 in)

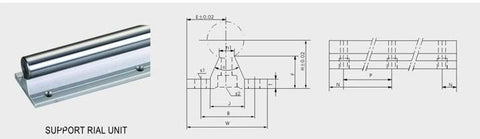

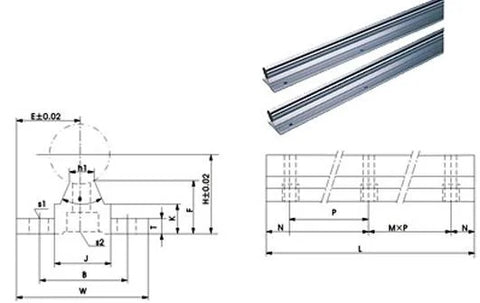

✅ Mounting hole pattern: S1 4.5 mm, S2 M4; overall mounting footprint and pattern shown in data
✅ Mounting pattern label: M*P 1x100 (100 mm)
✅ End/face dimensions: F 15 mm (0.591 in), T 4.5 mm (0.177 in)
💡 What is a 12mm linear guide rail used for in handy motion systems? This handy component provides precise linear guidance for a variety of setups. - Provides smooth, controlled movement along a fixed path. - Reduces friction and wear, extending service life. - Ideal for small CNC tables, automation frames, and light robotics. - Simple mounting with standard M4 screws on a 100 mm pattern.
