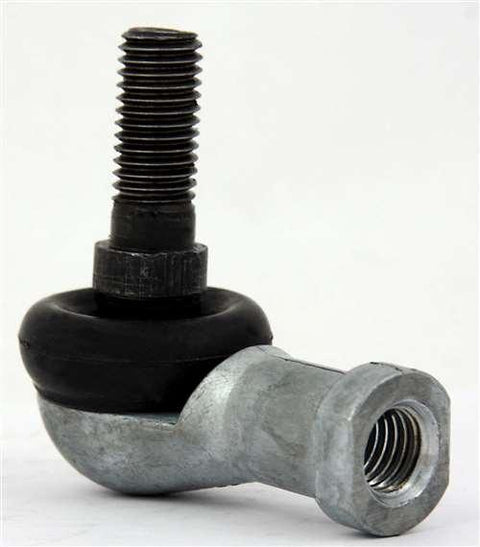

Front view of SQ5RS L-Ball Rod Ends 5mm Bore, showcasing metal body and threaded section, internal thread size M5x0.8.
Front view of SQ5RS L-Ball Rod Ends 5mm Bore with M5x0.8 thread, showing internal structure and black casing.

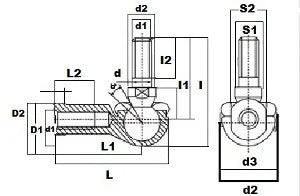

Technical drawing of SQ5RS L-Ball Rod Ends 5mm Bore showing dimensions and internal thread size M5x0.8.

SQ5RS L-Ball Rod Ends 5mm Bore

19.99 31.0011.01の節約
SKU: Kit13986
UPC: 00193019214428
Item: SQ5RS Bearing
Type: L-Ball Rod Ends
Quantity: One L-Shape Rod end
Static load Capacity: 210 KGF

L-Ball Rod Ends SQ5RS
5mm Inner Diameter

L-Ball Rod Ends SQ5RS, 5mm inner diameter, the internal thread size is M5x0.8, Cross-reference part numbers:

  • SQ5RS Bearing
  • L-Ball Rod Ends
  • Quantity: One L-Shape Rod end
  • Static load Capacity: 210 KGF


Dimensions (mm)
d d1 d2 d3 I I2 I3 S1 L L1 L2 D1 D2 D3 S2
5 M5x0.8 9 19 29 10 21 7 35 27 4 9 11 16 9
