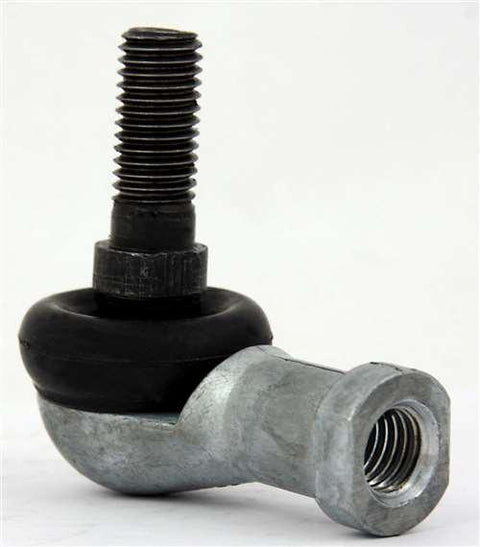

Metal SQ16RS L-Ball Rod Ends 16mm Bore with threaded stem, side view

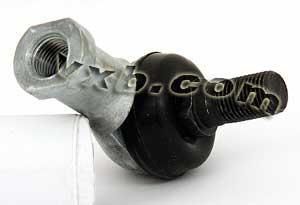

Close-up of SQ16RS L-Ball Rod Ends 16mm Bore showing M16x1.5 internal thread
Close-up of SQ16RS L-Ball Rod Ends 16mm Bore showing threaded M16x1.5 fitting in metal material.

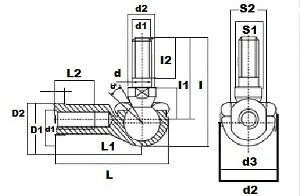

Technical diagram of SQ16RS L-Ball Rod Ends, showing dimensions and internal thread size M16x1.5 for 16mm bore.

SQ16RS L-Ball Rod Ends 16mm Bore

70.00 140.0070.00の節約
SKU: Kit13995
UPC: 00193019214503
Item: SQ16RS Bearing
Type: L-Ball Rod Ends
Quantity: One L-Shape Rod end
Static load Capacity: 26 KN

L-Ball Rod Ends SQ16RS
16mm Inner Diameter

L-Ball Rod Ends SQ16RS, inner diameter is 16mm, the internal thread size is M16x1.5, Cross-reference part numbers:

  • SQ16RS Bearing
  • L-Ball Rod Ends
  • Quantity: One L-Shape Rod end
  • Static load Capacity: 26 KN


Dimensions (mm)
d d1 d2 d3 I I2 I3 S1 L L1 L2 D1 D2 D3 S2
16 M16x1.5 22 44 79.5 23.5 60 19 84 64 8 22 27 39 22
