POS5 オス型ロッドエンド5mm 右ネジ M5x0.8 ベアリングジョイント
POS5 Male Rod End Bearing - Right Hand Thread
✔️ 5mm ID - M5x0.8 Thread - For Motion Control & Linkages
The POS5 is a right-hand male rod end bearing designed for smooth articulation in linear motion systems, steering assemblies, and mechanical linkages. With a 5mm bore and M5x0.8 thread, it’s perfect for small-scale machinery, robotics, or motion setups requiring compact and precise movement.
✅ Type: Male rod end (Heim joint)
✅ Thread Direction: Right-hand
✅ Inner Diameter (Bore): 5mm
✅ Thread Size: M5 x 0.8
✅ Dynamic Load Rating: 3,300 N
✅ Static Load Rating: 6,200 N
✅ Pack Size: 1 bearing

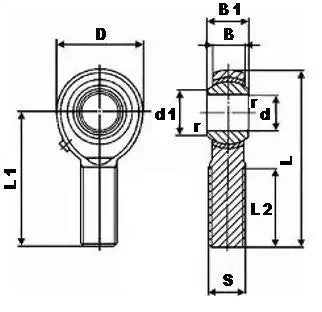

Dimensions (mm)：
| 仕様 | 値 |
|---|---|
| 内径 (d) | 5mm |
| スレッド | M5 x 0.8 |
| S（レンチ・フラット） | 16mm |
| D （ヘッド径） | 6mm |
| B（ボールWidth ） | 8mm |
| B1（Width の責任者） | 77mm |
| L（全長） | 35mm |
| L1（ねじ長） | 33mm |
| L2 （シャンク長） | 20mm |
💡 What are rod end bearings used for in mechanical systems?
Rod ends like the POS5 allow controlled pivoting and angular motion, making them essential in linkages where flexibility and strength are key - like suspension arms, actuators, and robotic joints.
Compact, strong, and built to flex - add the POS5 to your system and keep every move smooth and precise!
