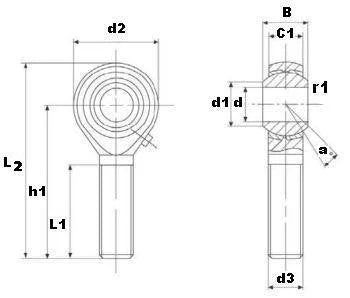

Technical diagram of Male Rod End 3/4 POSB12L Left Hand Bearing with detailed dimensions and specifications shown.

Male Rod End 3/4 POSB12L Left Hand Bearing

59.99 100.0040.01の節約
SKU: Kit12085
UPC: 00193019073957
Item: POSB12L Bearing
Type: Male Rod Ends
Thread Size: 3/4" UNF
Quantity: One Bearing

Male Rod End
Left Hand POSB12L

Male Rod End POSB12L, Works with 3/4" Inch Shafts, they are marked POSB12L, measures an inner diameter of 3/4" Inch, thread size (d3): 3/4".

  • POSB12L Bearing
  • Male Rod Ends
  • Thread Size: 3/4" UNF
  • Quantity: ベアリングQuantity:
  • Dynamic Load Rating: 29 KN
  • Static Load Rating: 29 KN


Dimensions Inches）
 a
d B R1s C1 d1 d2 d3

 h1 L1 L2
3/4インチ 7/8インチ 0.5mm 0.687" 0.978" 1-3/4" 3/4インチ 2-7/8" 1-3/4" 3-3/4インチ 10
