Bearing insert with eccentric locking collar for secure mounting, 1 1/8 inch bore, standard load capacity, wide inner ring with spherical outer ring, relubrication groove and oil hole on the set screw side, oil hole opposite groove for easy lubrication

1-1/8in Bore Bearing Insert with Ecc Collar
✔️ 1-1/8 in bore, 2-7/16 in OD, standard load, R-Seal, qty1

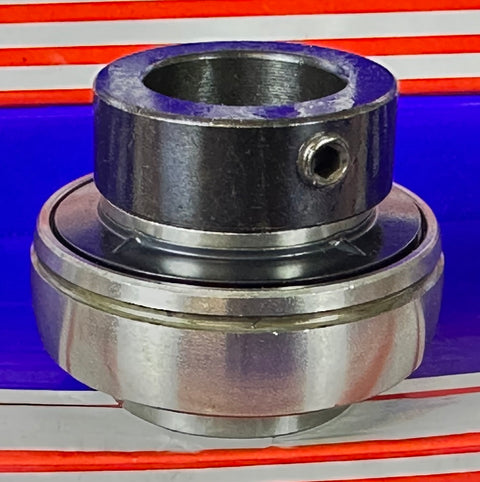

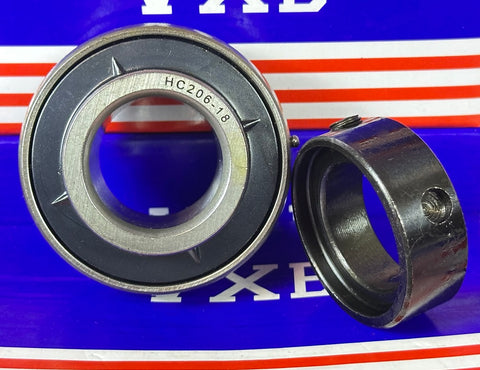

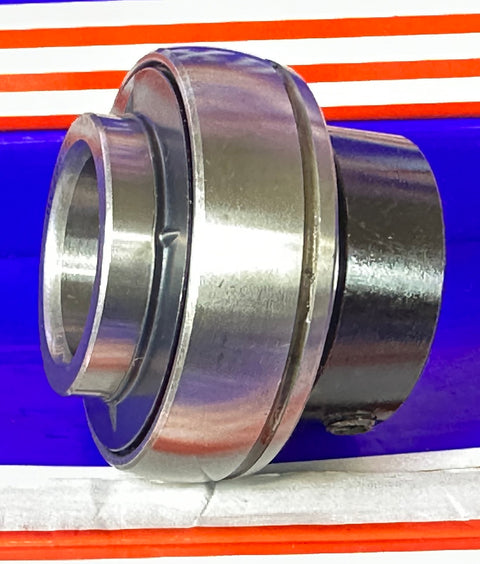

HC206-18 bearing insert with eccentric locking collar is designed to mount on a shaft with adjustable clamping and relubrication features. It's typically used in industrial machinery, conveyors, and equipment requiring quick shaft mounting and precise alignment.

✅ Bore ID: 1-1/8 in (28.6 mm)
✅ Outer diameter: 2-7/16 in (62.0 mm)
✅ Width: 1-7/16 in (36.5 mm)
✅ Eccentric locking collar for secure clamping
✅ Relubrication groove with oil hole on set screw side
✅ ナイロン補強付きクラス3A止めネジ
✅ Seal: R-Seal
✅ Dynamic load: 19440 N; Static load: 10320 N
✅ Shaft diameter: 1-1/8 in (28.6 mm)
✅ Thread: 1/4-28 x 1/4 in (UNF)

💡 What is a bearing insert with an eccentric locking collar used for in industrial machinery? These components are handy for quick shaft mounting and precise alignment.

- Handy for on-site alignment and quick shaft mounting
- Adjustable eccentric collar provides a secure, tight grip
- Common in conveyors, presses, and machine tools
