Grip It 360 Degree Bearing Insert With Locking Set Screw One And Five Sixteenths Inch Inner Diameter For Precise Rotational Control And Durable High Load Support In Industrial Machinery And Equipment

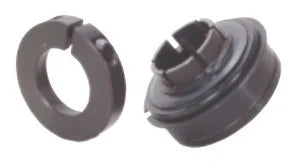

1 pc GRIP-IT 360° locking insert for 1-9/16 in shaft
✔️ ID 1-9/16 in, OD 3.15 in, sealed, grease-filled, 360° locking

This bearing insert is a GRIP-IT style locking insert with a 1-9/16 inch inner diameter designed to fit standard shafts. It's commonly used in industrial machinery, conveyors, automation equipment, and heavy-duty applications where positive locking and minimal play are critical.

✅ Inner diameter: 1-9/16 in (39.69 mm)
✅ Dynamic load rating: 32650 N
✅ Static load rating: 16236 N
✅ Locking: 360-degree grip with set screw nylon patched Class 3A
✅ Seal: R-seal standard

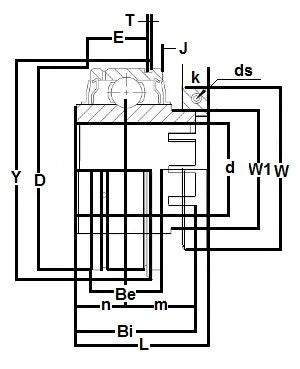

寸法	価値	備考
D	3.15 in	直径
Bi	1-15/16 in	Inner bore
Be	1-3/32 in	Be
L	2-7/64 in	長さ
n	3/4 in	Housing bore
m	1-3/16 in	Mounting width
W1	2-1/16 in	Feature width
J	1/8 in	Critical clearance
T	5/64 in	Seal thickness
Y	3-13/32 in	Overall height
K	7/16 in	Mount clearance
W ds (UNF-Thread)	2-11/16 in	ネジサイズ
スレッド	10-24x3/4 in	UNF thread

💡 What is a pillow block bearing used for in industrial machinery?

A handy support device that carries rotating shafts with stability.

- Supports shafts in conveyors, automation equipment, and agricultural machinery - Helps reduce friction and wear with sealed ball bearings - Enables easy mounting with standard threads and set screws
