AZ10015038 Roller Thrust ブロンズ製ケージ100x150x38mm

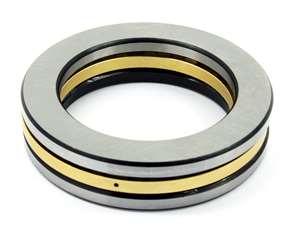

AZ10015038 Cylindrical Roller Thrust Bearing Bronze Cage
✔️ 100x150x38mm thrust bearing for heavy-duty axial loads

This is a single AZ10015038 cylindrical roller thrust bearing with a bronze cage (pack of 1), built for heavy axial load support in industrial gear systems, presses, and other heavy-duty motion assemblies that run under continuous stress.

Inner diameter：100mm
✅Outer diameter：150mm
✅Width：38mm
✅ ケージmaterial: 青銅
✅Dynamic load rating Cr）：340000 N
✅Static load rating Cor）：1080000 N
✅Limiting speed: 2300 rpm
✅Quantity: ベアリング 1 個

Dimensions 表

d inner diameter)100mm
Douter diameter 150mm
T (厚さ)38mm
D1150mm
d1103mm
rr min 11mm
Ca (動的) 340000 N
Coa (静的) 1080000 N
Cua 111000 N
Ng (限界速度) 2300 rpm

💡 Why are cylindrical roller thrust bearings used for extreme axial loads?
They use long, barrel-shaped rollers set in line with the thrust direction to carry heavy axial pressure without deforming.
- This gives a stronger contact footprint for high axial force
- The geometry maintains rigidity under shock and braking load
- The bronze cage helps stabilize speed and heat dissipation

スムーズな動きを犠牲にすることなく、大きなthrust 荷重に耐えるものをお望みなら、これは強力な味方だ。
