Double Row Angular Contact Ball Bearing 5210-2RS With Bore 50mm Outer Diameter 90mm Width 30.2mm Sealed On Both Sides Clearance 1 To 15 Microns Dynamic Load Rating 51 kN Static Load Rating 3 kN Suitable For Precision Machinery And Automation

Enhanced 5210-2RS Angular Contact Bearing, double-row

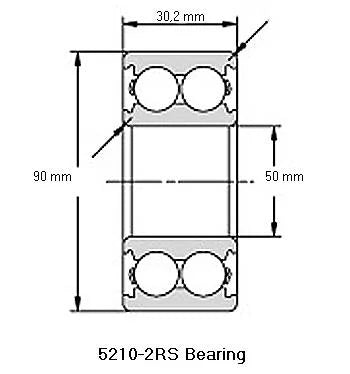

✔️ 50 mm bore, 90 mm OD, 30.2 mm width, double-row angular

The 5210-2RS is a double-row angular contact bearing designed to handle both radial and axial loads at once, making it ideal for precision machinery and belt-driven systems where shaft alignment matters.

✅ bore: 50 mm
✅ outer diameter: 90 mm
✅ width: 30.2 mm
✅ inner ring tolerance: 0 to -15 μm
✅ outer ring tolerance: 0 to -18 μm
✅ clearance: 1 to 15 μm
✅ basic dynamic load rating Cr: 51 kN
✅ basic static load rating Cor: 39 kN
✅ grease lubrication: 4800

💡 産業機械において、ピローブロックベアリングはどのような用途に使われるのでしょうか？

Handy, general-purpose bearing for supporting shafts in a fixed housing.

- supports rotating shafts in fixed housings - maintains alignment in conveyors, motors, and gearboxes - handles radial and axial loads in compact spaces - easy to mount and service in maintenance routines
