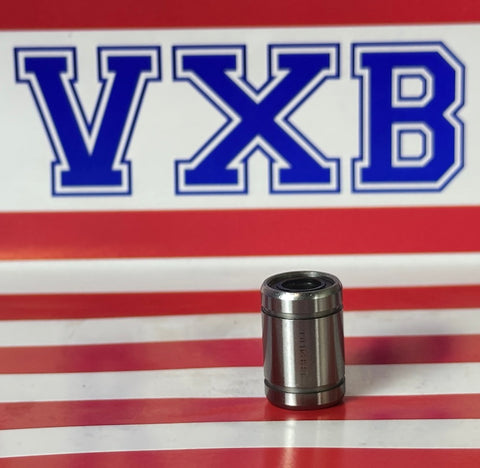

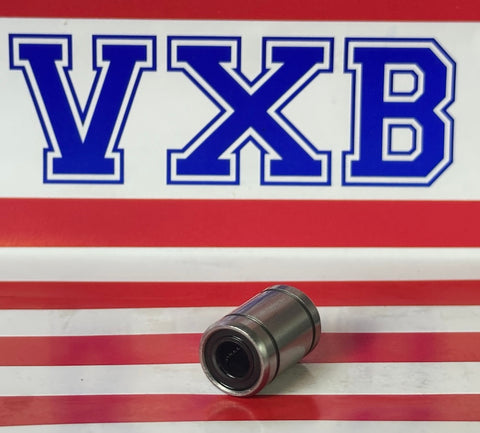

LBB4UU 1/4" Boccola a sfera Sealed Linear Motion
Prezzo normale
$19.99
Prezzo di vendita$27.99risparmiate $8,00
| LBB4UU Boccola a sfera da 0,25 inch Sistemi lineari |
LBB4UU is a 1/4" Bore linear motion ball bushings/bearings, LBB4UU has built in rubber Seals on both sides, inner diameter(bore) is 1/4" inch dimensions with resin retainer, Bearing is a high accuracy grade linear bushings, series mainly used in the USA.
|

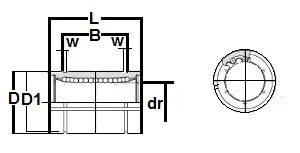

| dimensions Major e tolerance inches) | Eccentricità inch) |
Gioco Radial inch) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | ||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | ||||
| 1/4" | 0-00035 | 5/16" | 0-0.004 | 1/2" | 0-.008 | 23/64" | 0-.008 | 9/32" | 19/64" | 0.0003 | -0.001 |
