HC202-10 Bearing Insert 5/8 Inch Mounted With Eccentric Locking Collar, Wide Inner Ring, Spherical Outer Ring, Relubrication Groove, Oil Hole On Set Screw Side And Opposite Groove For Easy Lubrication, Standard Load Capacity

Mounted bearing insert HC202-10, 1x pack, 5/8 in shaft
✔️ 5/8 in shaft dia; standard load; wide inner ring, spherical outer race

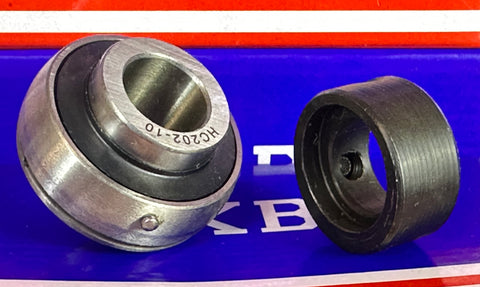

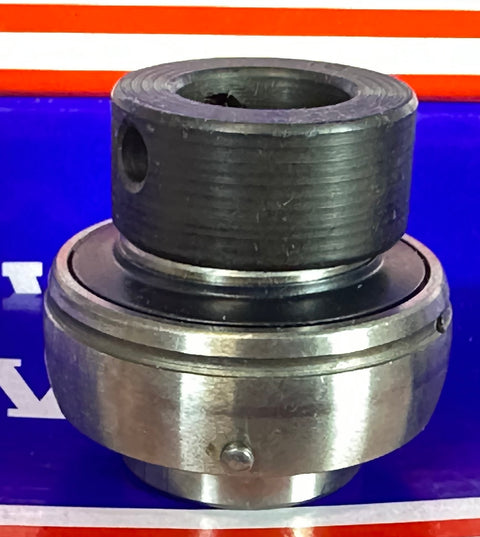

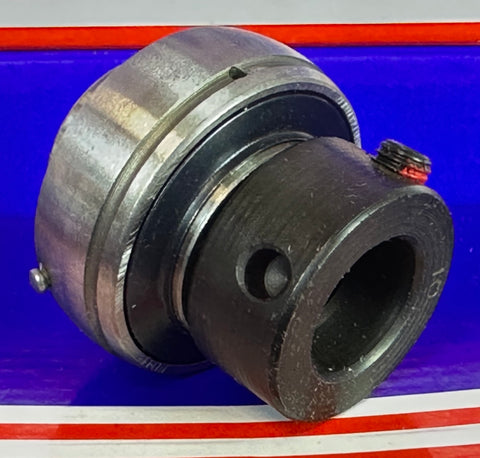

The HC202-10 bearing insert is a mounted unit designed to fit into a compatible bearing housing and is commonly used on conveyors, rollers, and automation equipment with rotating shafts. It features an eccentric locking collar, a relubrication groove with an oil hole on the set screw side, and a standard R-Seal for reliable sealing. The opposite oil hole design makes it interchangeable with many manufacturers.

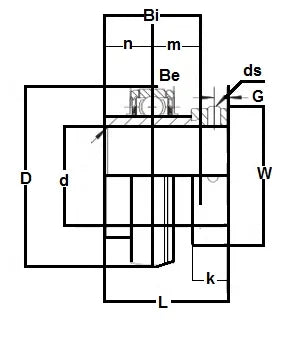

Dimensione	Inches	Millimetri
D	1-55/64"	47.2
L	1-23/32"	43.5
Bi	1-25/64"	35.3
Be	19/32"	15.1
r	0.059"	1.50
m	21/32"	16.6
W	21/32"	16.6
K	1-1/4"	31.75
G	17/32"	13.5
ds	13/64"	5.16
Il filo	1/4-28x1/4"	-

✅ 5/8 in bore (shaft) with standard load capacity
✅ Wide inner ring with spherical outer race
✅ Relubrication groove and oil hole for maintenance
✅ Nylon patched 3A set screw for secure mounting
✅ R-Seal provides dust and grease retention

💡 What is a pillow block bearing used for in automated manufacturing and conveyor systems?

Pillow block bearings provide a handy mounting solution for supporting rotating shafts in a compact unit that fits many applications. - Handy for conveyors and packaging lines - Suitable for quick repairs and easy maintenance - Works with common shaft diameters including 5/8 inch
