Side view of Female Rod End 14mm PHS14 Right hand Bearing, showing 14mm inner diameter and metallic finish, suitable for 14mm shafts.

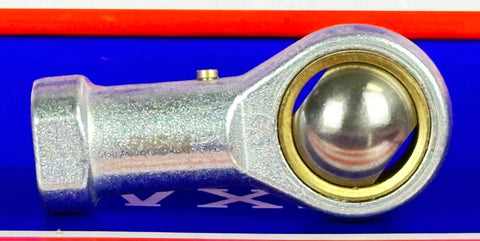

Side view of a Female Rod End 14mm PHS14 Right hand Bearing made of metal, spherical joint visible, for 14mm shafts.

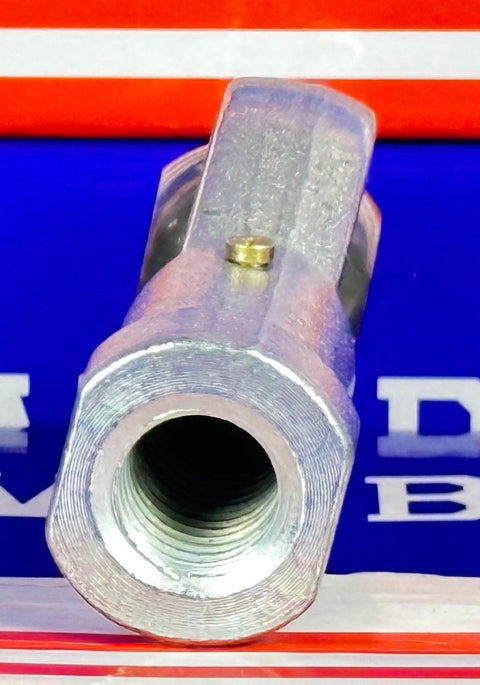

Front view of a Female Rod End 14mm PHS14 Right hand Bearing, showing internal thread size M14x2, set against a blue background.

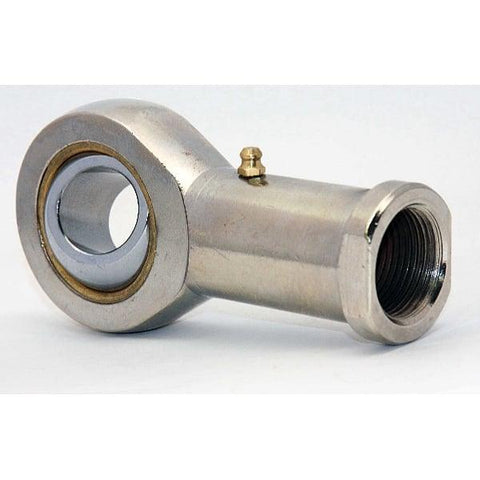

Side view of a Female Rod End 14mm PHS14 Right hand Bearing with 14mm inner diameter and M14x2 internal thread size.

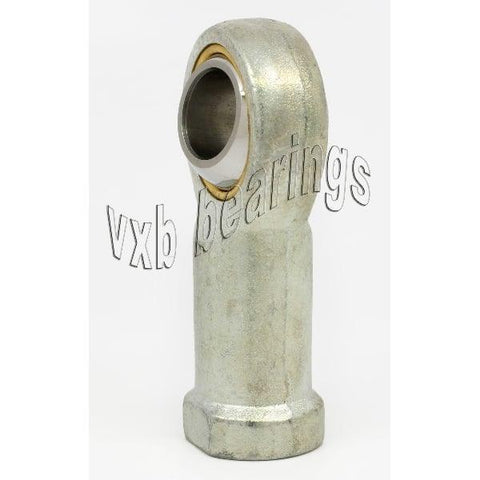

Side view of Female Rod End 14mm PHS14 Right hand Bearing with M14x2 thread, displayed against white background
Female Rod End 14mm PHS14 Right hand Bearing in steel, showing thread and rod end design, compatible with 14mm shafts.

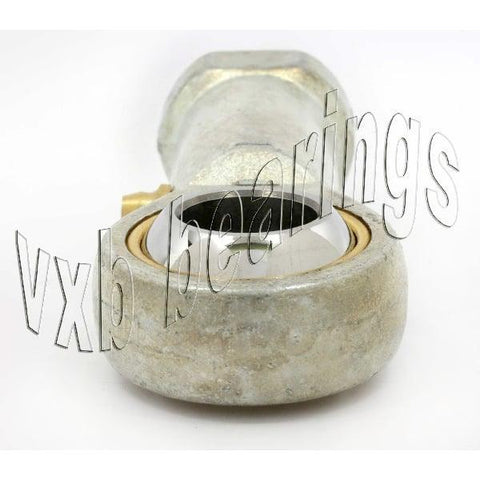

Female Rod End 14mm PHS14 Right hand Bearing front view, showing metal structure and threading details with VXB Bearings text overlay.

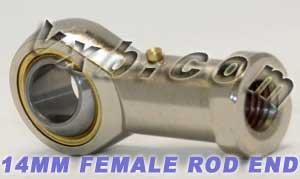

Side view of Female Rod End 14mm PHS14 Right hand Bearing with visible inner diameter and thread, ideal for 14mm shafts.
Female Rod End 14mm PHS14 Right hand Bearing, metal construction, side view showing 14mm inner diameter and M14x2 thread size.

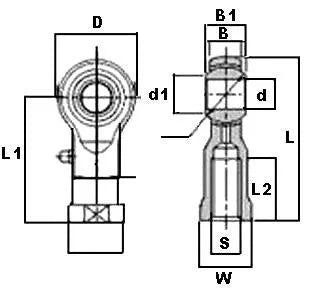

Technical diagram of Female Rod End 14mm PHS14 Right hand Bearing with measurements for installation and assembly.

VXB

Estremità di stelo femmina 14mm PHS14 Cuscinetto destro

$14.99 $16.64risparmi 1,65 dollari
SKU: Kit11587
UPC: 00193019207154
Item: PHS14 Bearings
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 1,710 KGF
Static load Capacity: 2,130 KGF
Estremità asta femmina "PHS-14"
Una mano destra

One Right Hand Female Rod End PHS-14 Works with 14mm Shafts, inner diameter is 14mm, the internal thread size is M14x2, Cross-reference part numbers:

  • Cuscinetti PHS14
  • Aste di trasmissione Giunti Heim Cuscinetto
  • Quantity: 1 cuscinetto
  • Dynamic load Capacity: 1,710 KGF
  • Static load Capacity: 2,130 KGF
  • IKO: PHS14
  • ELGES: GIKFR 14 PB
  • Pari: SIKAC 14 M
  • HIRSCHMANN: SF 14


Dimensions mm)
d Filetto
S		 D B B1 d1 L L1 L2 W
14 M14x2 34 13.5 19 16.9 74 57 27 22
