Roller Needle seguicamma CF18 40mm
CF18 Cam Follower Bearing
✔️ Needle Roller Bearing 18x40x58mm
The CF18 cam follower is a needle roller bearing designed for heavy-duty applications that require precise motion and strong load handling. Built with an M18x1.5 threaded shaft, this follower is easy to mount and delivers reliable performance in automation, conveyors, and machinery.
✅ Needle roller cam follower design
✅ Inner diameter: 18mm
✅ Outer diameter: 40mm
✅ Overall length: 58mm
✅ Thread: M18x1.5
✅ Dynamic load rating: 1,500 KGF
✅ Static load rating: 2,570 KGF
✅ Pack size: 1 bearing
✅ Equal reference: MCFR-40-X

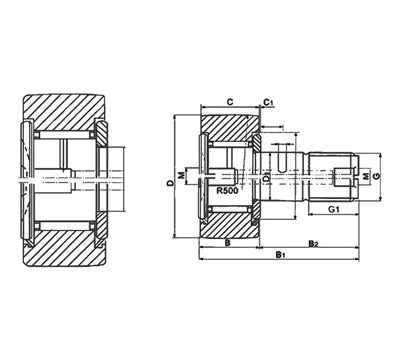

Dimensions mm):
| d1ID) | D OD) | B | B1 | B2 | B3 | G (Thread) | G1 | C | C1 |
|---|---|---|---|---|---|---|---|---|---|
| 18 | 40 | 21.6 | 58.1 | 36.5 | 8 | M18x1,5 | 19 | 20 | 0.8 |
💡 Why use cam follower needle roller bearings in machinery?
Cam followers are built to handle high radial loads while tracking smoothly.
-
I rulli Needle distribuiscono il carico per una maggiore portata
-
L'albero filettato consente un montaggio sicuro e rapido
-
Ideale per nastri trasportatori, binari di guida e apparecchiature automatizzate
Un cuscinetto seguitore robusto e affidabile che mantiene il vostro sistema in movimento con precisione; ordinatene uno oggi stesso e mantenete le vostre macchine in pista.
