VXB

AS12 Supporto per cuscinetto One-Way 12x32x10mm Richiesto frizione antiretro

Prezzo normale $39.99 Prezzo di vendita$69.99risparmiate $30,00
SKU: Kit12527_1
UPC: 00193019209363
Item: AS12 Clutch
Type: One Way Clutch
Applications: Overrunning, Indexing, Backstopping
Dimensions: 12mm x 32mm x 10mm/metric
Inner Diameter: 12mm

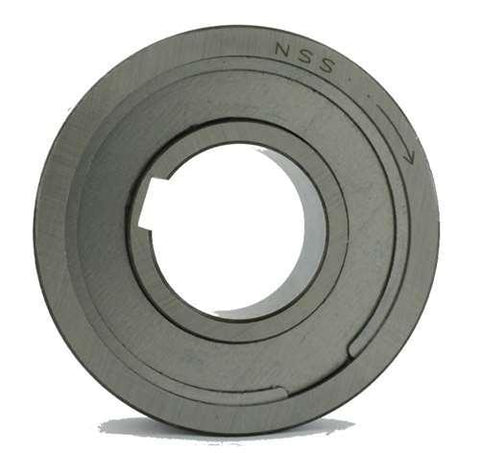

AS12 One Way Clutch
One Clutch
AS12 = NSS12


AS12 is a one-way clutch,that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, this is exactly the same size as any 6201 ball bearing, you will need one of the 6201 beairngs to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. AS12 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • Frizione AS12
  • Frizione monodirezionale
  • Applicazioni: Overrunning, indicizzazione, backstop
  • Dimensions: 12mm x 32mm x 10mm (metrico)
  • Inner Diameter: 12mm
  • Outer Diameter: 10mm
  • Width: 28mm
  • Coppia: 10 TKN
  • Coppia Max : 25 TKN
  • Superamento della corsa interna: 3.200 RPM
  • Superamento della corsa esterna: 4.800 RPM
  • Quantity: Una frizione

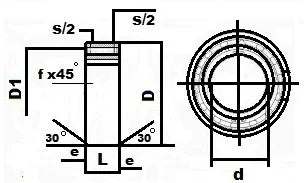

Dimensionimm)
d D D1 L s e f
12 32 28 10 1.3 0.6 0.6
