Two And Three Eighths Inch Inner Diameter Flanged Mounted Bearing With Eccentric Collar Lock In Cast Housing, 2 Bolt Flange, Ball Bearing With Flange, Model HCFL212-38, High Dynamic Load 47,700 N And Static 32,900 N

Flanged mounted bearing with eccentric collar, 2 3/8 bore
✔️ 2 3/8 in bore, 2-bolt flange, eccentric collar lock

The HCFL212-38 mounted bearing sits in a sturdy two-bolt flange housing and is used to support rotating shafts in machinery. This style is common in conveyors, woodworking equipment, and general industrial setups where easy maintenance and reliable alignment matter. The eccentric collar lock lets you preload the bearing quickly, keeping the shaft steady under load.

✅ Bore: 2 3/8 in (60.3 mm)
✅ Bolt size: 5/8 in
✅ Dynamic load Cr: 47,700 N
✅ Static load Cor: 32,900 N
✅ Bearing no HC212-38; Housing no FL212

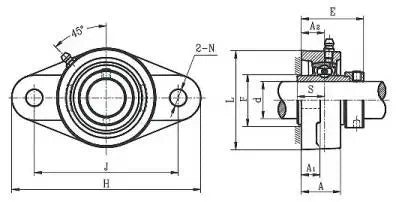

✅ Flange dimensions: D 2 3/8 in, H 9 27/32 in, J 7 31/32 in
✅ Overall length L: 140 in (3556 mm)

💡 What is a mounted bearing with a flange used for in mechanical systems? This handy component keeps shafts aligned and supports rotation under load in many machines. - Common in conveyors, pumps, and woodworking equipment - Quick preload adjustment with an eccentric collar lock - Robust two-bolt flange for solid mounting - Accepts standard bore sizes like 2 3/8 in for easy swaps
