Unità di trasferimento a sfere Stainless Steel per impieghi gravosi da 176 libbre Cuscinetto di superficie 67mm

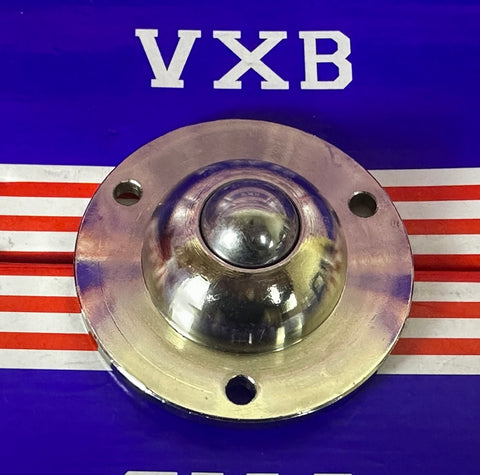

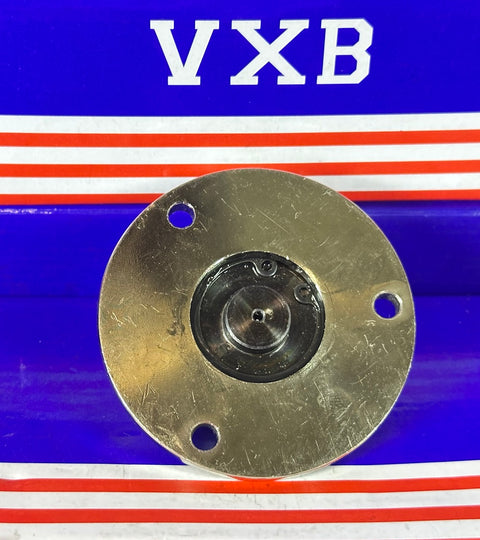

176 lb Stainless Ball Transfer Unit, 67mm Surface Mount
✔️ Load 176 lb; ball 19.05mm; body 40x26mm; stainless, 1 unit

This stainless steel ball transfer unit provides smooth, low-friction movement for heavy items across workstations and conveyors. Ideal for cargo tables, sorting areas, and assembly lines where easy multi-directional shifting is needed.

✅ Load capacity: 176 lbs
✅ Breaking load: 220 lbs
✅ Ball diameter (d): 19.05mm (0.75")
✅ Body diameter (D): 40mm (1.57")
✅ Height (H): 26mm (1.02")
✅ Flange height (h1): 6.5mm (0.255")
✅ Ball protrusion (h3): 21mm (0.826")
✅ Plate width (P): 55mm (2.16")
✅ Overall length (L): 67mm (2.63")
✅ Material: Stainless steel
✅ Quantity: 1 unit

💡 What is a ball transfer unit used for in material handling?

- Handy for multi-directional movement of heavy pallets and panels in manufacturing settings. - Improves efficiency on workstations and conveyors by enabling smooth lateral shifts. - Stainless steel construction resists corrosion in harsh environments.
