TW10-OP TopBall Open Self Aligning Ball Bushing 5/8 Inch Bore High Load Linear Motion Bearing Made in Japan by NB Linear Systems for Precision Applications

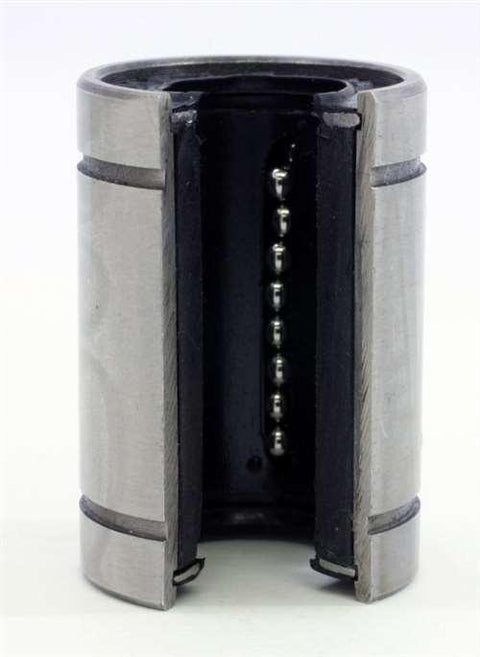

TW10 OP TopBall Self Aligning Linear Ball Bushing 5 8 Inch Bore
✔️ Single High Load Open Type Ball Bushing Made in Japan

The TW10 OP TopBall self aligning ball bushing is a high load linear motion bearing designed for smooth travel and long service life on round shafts. Made by NB Linear Systems in Japan, this open type linear bushing is commonly used in automation, industrial machinery, and linear slide systems where higher load capacity and alignment flexibility are required. Supplied as one bearing.

✅ Pack size: 1 bearing
✅ Bearing type: Self aligning linear ball bushing
✅ Series: TopBall high load open type
✅ Bore size: 5 8 inch 15.88 mm
✅ Ball circuit count: 5
✅ Design: Open type for supported shafts
✅ Load capacity: High load design with extended service life
✅ Brand: NB Linear Systems Nippon Bearing
✅ Country of origin: Japan
✅ Dynamic load rating Cr: 1780 N
✅ Static load rating Cor: 2224 N
✅ Typical use: Linear motion systems, automation, guided slides, industrial equipment

Dimensions
Parameter Inch mm
Bore 5 8 in 15.88
Outer Diameter 1 1 4 in 31.75
Overall Length 1 1 2 in 38.10

💡 Why are high load self aligning ball bushings used in linear motion systems?
High load self aligning ball bushings are designed to handle misalignment while extending operating life.

• Self aligning structure reduces binding from shaft deflection or mounting error

• Multiple ball circuits increase load capacity and improve stability

• Open type design allows use on supported shafts for higher rigidity

• Ideal for automation, machinery, and long stroke linear motion applications

This linear bushing is a handy choice when you need smooth motion, higher load handling, and long lasting performance in demanding linear setups.
