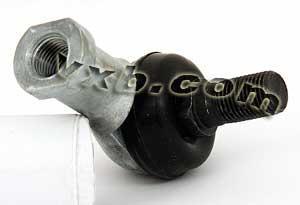

Close-up of SQ16RS-1 L-Ball Rod End with 16mm bore, showing M16x2 internal thread and metal construction.

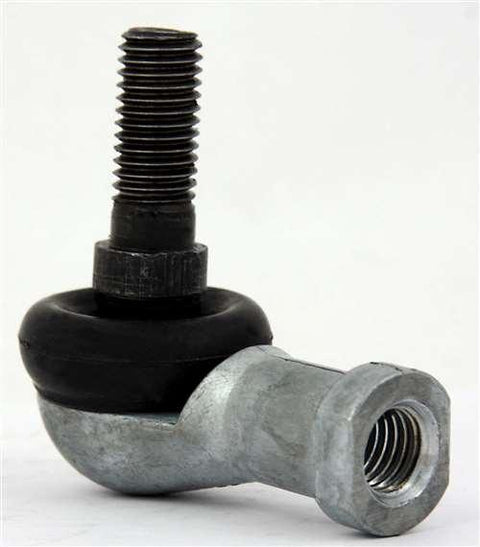

SQ16RS-1 L-Ball Rod Ends 16mm Bore with M16x2 internal thread and static load capacity of 26 KN, side view showing threaded sections.
Side view of SQ16RS-1 L-Ball Rod Ends 16mm Bore with visible threaded connection and bearing surface.

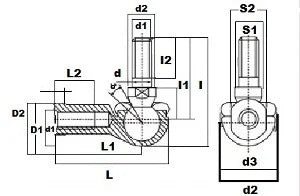

Technical diagram of SQ16RS-1 L-Ball Rod Ends 16mm Bore with measurements and specifications.

SQ16RS-1 Cabezas de rótula en L Diámetro 16mm

70.00 140.00Ahorras70.00
SKU: Kit13996
UPC: 00193019214510
Item: SQ16RS-1 Bearing
Type: L-Ball Rod Ends
Quantity: One Bearing
Static load Capacity: 26 KN

L-Ball Rod Ends SQ16RS-1
16mm Inner Diameter

L-Ball Rod Ends SQ16RS-1, inner diameter is 16mm, the internal thread size is M16x2, Cross-reference part numbers:

  • Rodamiento SQ16RS-1
  • Cabezas de rótula L-Ball
  • Quantity: 1 Rodamiento
  • Capacidad de carga estática: 26 KN


Dimensions mm)
d d1 d2 d3 I I2 I3 S1 L L1 L2 D1 D2 D3 S2
16 M16x2 22 44 85.5 23.5 60 19 84 64 8 22 27 39 22
