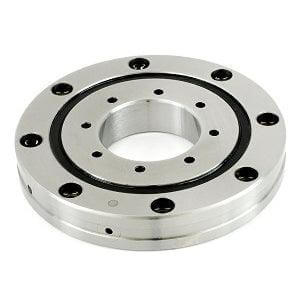

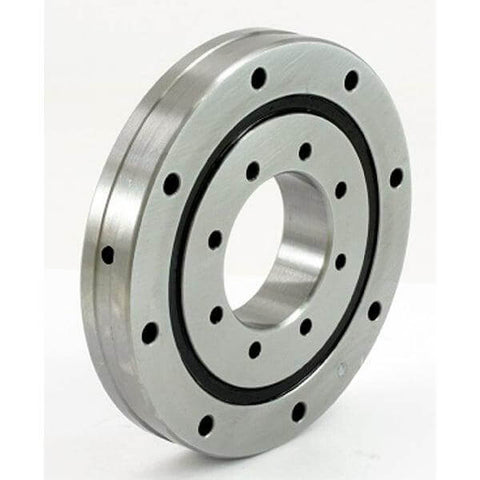

X Anillo Roller X con orificios roscados Rodamiento giratorio 210x380x40mm

RU297UU-CCO-X Cross Roller Slewing Ring Tapped through holes Turntable Bearing, cylindrical rollers are arranged crosswise.This design allows just one bearing to receive loads in all directions including, radial, axial and moment load. The inner and outer rings are designed to be separable, the bearing clearance can be adjusted. In addition, highly accurate rotary motion is ensured through adjusting the bearing clearance to provide a preload. .

• RU297UU Rodamientos deX
• Anillo Roller cruzados con orificios roscados Rodamiento para plataforma giratoria
• Cierres: Sealed
• Dimensions: 210x380x40mm
• X = Taladros pasantes roscados
• CC0 = es el Despeje radial
• Inner Diameter (ID): 210mm
• Outer Diameter (OD): 380mm
• Width: 40mm
• dp: 297mm Roller pitch circle dia.
• PCD1: 240mm M12 pasante Orificio de montaje
• PCD2: 350mm 16-??14 drilled through Mounting hole, ??20 counter bore depth 13
