POS5 Rótula Macho 5mm Derecha M5x0.8 Junta de Cojinete
POS5 Male Rod End Bearing - Right Hand Thread
✔️ 5mm ID - M5x0.8 Thread - For Motion Control & Linkages
The POS5 is a right-hand male rod end bearing designed for smooth articulation in linear motion systems, steering assemblies, and mechanical linkages. With a 5mm bore and M5x0.8 thread, it’s perfect for small-scale machinery, robotics, or motion setups requiring compact and precise movement.
✅ Type: Male rod end (Heim joint)
✅ Thread Direction: Right-hand
✅ Inner Diameter (Bore): 5mm
✅ Thread Size: M5 x 0.8
✅ Dynamic Load Rating: 3,300 N
✅ Static Load Rating: 6,200 N
✅ Pack Size: 1 bearing

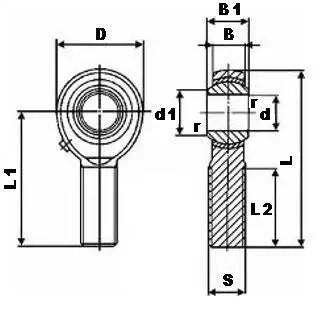

Tabla de Dimensions mm):
| Espec | Valor |
|---|---|
| Taladrod) | 5mm |
| Hilo | M5 x 0.8 |
| S (Llave plana) | 16mm |
| D (Diámetro de la cabeza) | 6mm |
| B ( Width la bola) | 8mm |
| B1 ( Width la cabeza) | 77mm |
| L (longitud total) | 35mm |
| L1 (Longitud de rosca) | 33mm |
| L2 (Longitud de la caña) | 20mm |
💡 What are rod end bearings used for in mechanical systems?
Rod ends like the POS5 allow controlled pivoting and angular motion, making them essential in linkages where flexibility and strength are key - like suspension arms, actuators, and robotic joints.
Compact, strong, and built to flex - add the POS5 to your system and keep every move smooth and precise!
