NSS50 One-Way 50x90x20 Soporte de rodamientos Necesario Embrague antirretroceso

NSS50 One-Way Sprag Clutch Freewheel
✔️ 50mm x 90mm x 20mm - Overrunning, Indexing & Backstopping

The NSS50 is a heavy-duty one-way clutch designed for systems that need rotation in only one direction. It’s perfect for overrunning, indexing, and backstopping functions in machines like conveyors, printing presses, textile systems, and industrial drives. This unit is non-bearing supported and should be paired with external bearings for proper alignment.

✅ Inner diameter: 50mm
✅ Outer diameter: 90mm
✅ Width: 20mm
✅ Torque capacity: 184 TKN
✅ Resistance torque: 13 TKN
✅ Inner race overrunning speed: 950 RPM
✅ Outer race overrunning speed: 1,500 RPM
✅ Type: Sprag-style one-way clutch
✅ Applications: Mining, conveyors, washing machines, textiles, hydraulics
✅ Pack size: One clutch

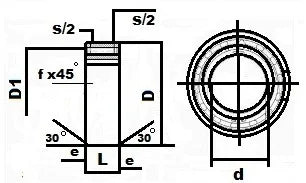

Tabla dimensional:

💡 Why choose a sprag clutch for one-way rotation systems?
Sprag clutches offer quick engagement and reliable torque transfer.

• Evita el movimiento inverso en sistemas críticos

• Común en transportadores y frenos de maquinaria accionados por gravedad

• Funciona sin holgura para un control direccional limpio

• Ayuda a proteger los componentes durante las paradas repentinas o la pérdida de potencia

¿Necesita detener el giro y bloquearlo? Coloque este embrague y mantenga su sistema moviéndose en la dirección correcta, pida el suyo hoy.
