VXB

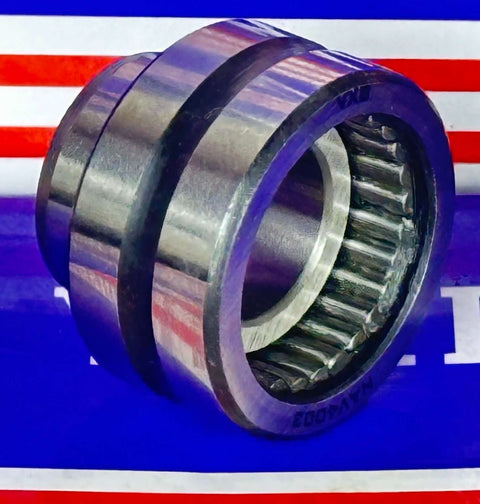

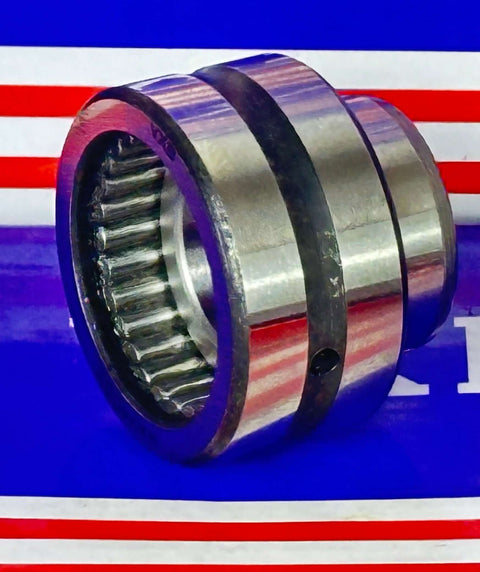

Roller Needle de complemento NAV4003 17x35x18mm
UPC: 00193019300855
Type: Full Complement Needle Roller Bearing
Dimensions: 17mm x 35mm x 35mm/Metric
Brand VXB Bearing
Quantity: One Bearing
NAV4003 Full Complement Needle Roller Bearing
✔️ 17mm ID - 35mm OD - 18mm Width
The NAV4003 is a full complement needle roller bearing with inner ring, designed to carry high radial loads in compact spaces. With no cage, it maximizes roller quantity for strength and stability - ideal for gearboxes, hydraulic drives, and compact machinery where space and load handling are critical.
✅ Pack size: 1 bearing
✅ Type: Full complement needle roller bearing with inner ring
✅ Size: 17mm x 35mm x 18mm
✅ Inner diameter (d): 17mm
✅ Outer diameter (D): 35mm
✅ Width (B): 18mm
✅ Minimum radius (r): 1mm
✅ Dynamic load rating: 4,850 N
✅ Static load rating: 4,900 N
✅ Brand: VXB Bearing
Dimensions mm):
| d | D | B | r (min) |
|---|---|---|---|
| 17 | 35 | 18 | 1 |
💡 ¿Por qué utilizar rodamientos needle sin jaula en sistemas compactos de alta carga?
Sin jaula, estos rodamientos reúnen más rodillos en el mismo espacio, distribuyendo la fuerza uniformemente y aumentando la capacidad de carga radial en montajes reducidos, donde la resistencia para ahorrar espacio es lo más importante.
🛠️ Es pequeño, fuerte y está listo para rodar: ¡no hagas que tu caja de cambios se haga de rogar!
