LMB243848AJ Casquillo de Bolas de Linear Motion Ajustable 1-1/2
Precio normal
$136.99
Precio de venta$210.00ahorra $73.01
| LMB243848AJ:Casquillo esférico de tipo ajustable con holgura Fabricado en JapónNB Linear Systems |
|
1 1/2" LMB243848AJ Clearance Adjustable Type Linear Motion Ball Bushing,1 1/2" Bore inch type linear motion ball bushing/bearing, inner diameter(bore) is 1 1/2" inch,high accuracy grade linear bushing, inch series is mainly used in the USA, NB brandNippon Bearing Linear Systems), made in Japan.
|

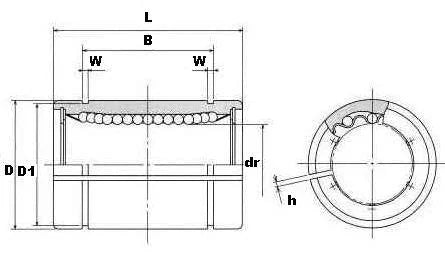

| dimensions Major y tolerance inches) | Excentricidad inch) |
Juego Radial inch) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | h | ||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | |||||
| 1-1/2" | 0-.0005 | 2-3/8" | 0-.00075 | 3" | 0-.012 | 2-13/32" | 0-.012 | 55/64" | 15/64" | 0.12" | .0008" | 0-.0003" |
