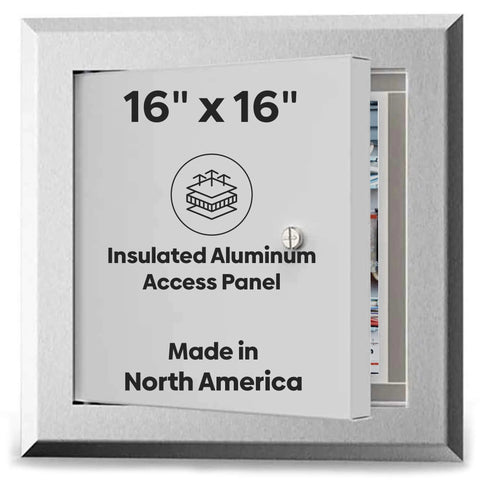

Insulated Aluminum Access Door 16x16 Exterior Access Panel For Walls And Ceilings Screwdriver Cam Latch Mill Finish
✔️ Single 16x16 panel, 0.064 in aluminum, 1.5 in depth, EPS insulation

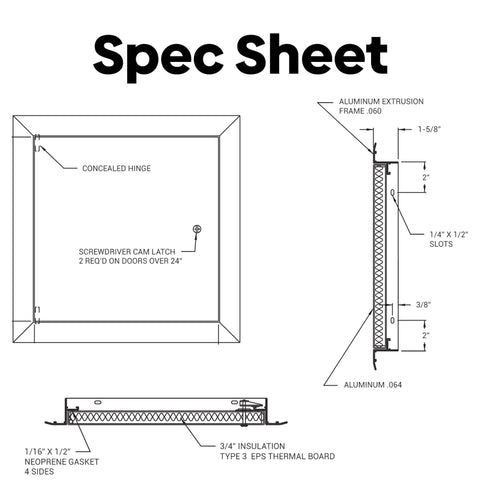

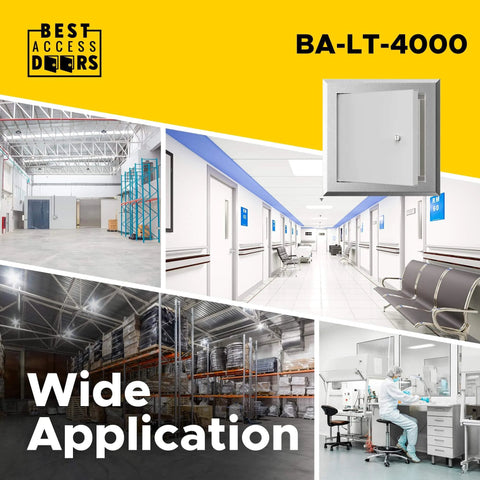

The AMZ-BA-LT-4000 is a 16 x 16 inch insulated aluminum exterior access door designed to provide secure, weather-tight access behind walls and ceilings. Built from robust 0.064" aluminum with a 0.08" aluminum frame, this unit features a concealed pin hinge and a screwdriver cam latch for reliable service in commercial, industrial, and residential settings. Its 3/4" thick EPS insulation and 1/8" x 3/8" neoprene gasket deliver a tight seal against dust, moisture, and air leakage. The mill-finish flange and corrosion-resistant construction make it suitable for both interior and exterior wall or ceiling installations across a wide range of building projects.

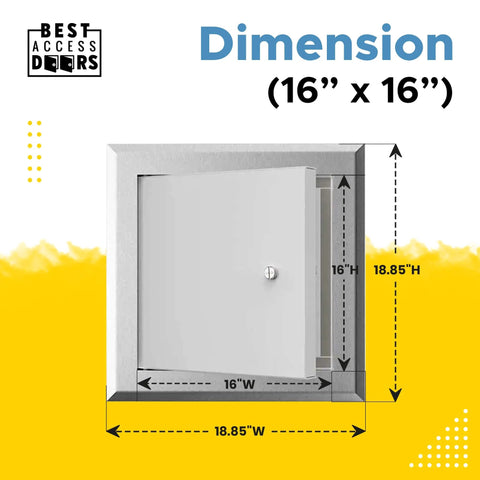

✅ 16” x 16” exterior access panel size with 1-5/16” flange (mill finish)
✅ 0.064” aluminum body with 0.08” frame for durability

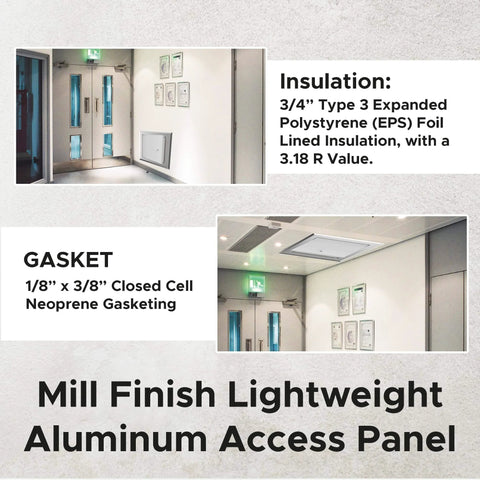

✅ 3/4” EPS insulation with foil lining and R 3.18 value
✅ 1/8” x 3/8” neoprene gasket for moisture seal

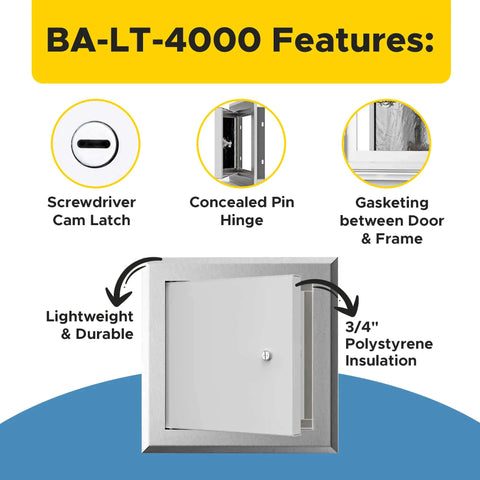

✅ Concealed pin hinge and screwdriver cam latch for easy access

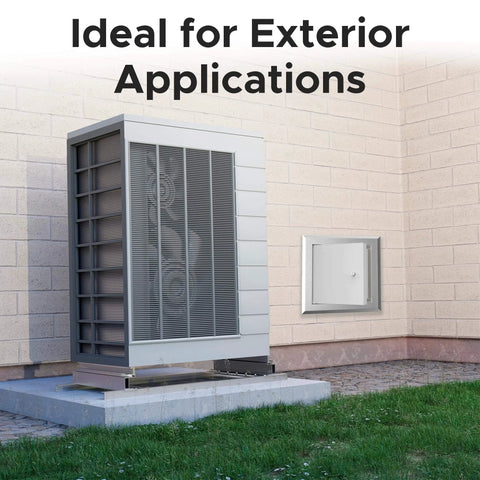

✅ Weather-sealed design suitable for exterior or damp interior use
✅ Made in North America with durable, corrosion-resistant construction
💡 What is an insulated aluminum access door used for in walls and ceilings?
Handy access panel designed to reach behind walls and ceilings while keeping out dust and moisture.
- Handy for HVAC, electrical, or plumbing work behind walls or ceilings - Seals out dust and moisture with neoprene gasket and EPS insulation - Durable aluminum construction resists corrosion for indoor/outdoor installs - Simple, secure access with a screwdriver cam latch for maintenance
