Fije de forma eficaz los componentes giratorios con un inserto de rodamiento GRIP IT de 360 grados, que cuenta con bloqueo mediante tornillo de fijación, un anillo interior ancho de 1 inch inner diameter y una capacidad de carga estándar, lo que garantiza un funcionamiento estable y sin vibraciones, así como una instalación rápida y fiable.
✔️ 1 in bore, dynamic 14011 N, static 7162 N, 360° locking.

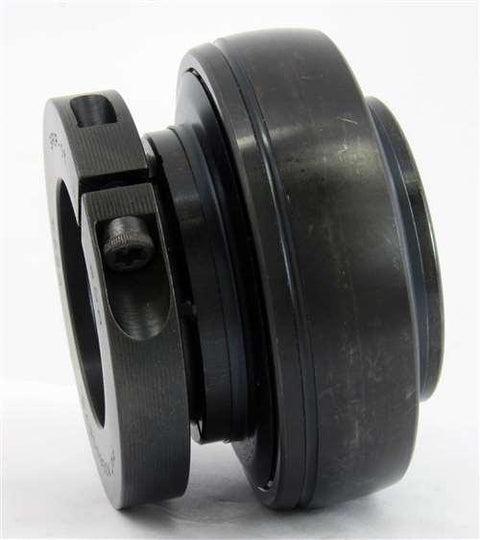

This locking bearing insert fits a 1 inch shaft and is designed to support rotating elements in machinery, conveyors, and automation setups.
✅ Shaft diameter: 1 in (25.4 mm) inner bore
✅ Dynamic load rating: 14011 N
✅ Static load rating: 7162 N
✅ 360-degree locking with set screw
✅ Wide inner ring; cylindrical outer ring with snap ring
✅ Relubrication groove with oil hole opposite the locking collar
✅ Black oxide plated inner/outer rings
✅ Nylon patched class 3A set screw
✅ Standard seal: R-seal

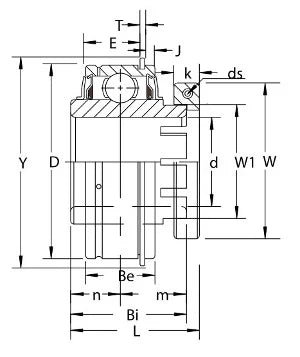

| Dimensión | Inch | mm |
|---|---|---|
| D | 2-3/64 in | 52,0 mm |
| Bi | 1-7/32 in | 31.0 mm |
| Be | 4 in | 19,05 mm |
| L | 1-1/2 in | 38,1 mm |
| n | 9/1616 in | 14,29 mm |
| m | 51/64 in | 20.32 mm |
| E | 39/64 in | 15.49 mm |
| W1 | 1-21/64 in | 33.74 mm |
| J | 7/64 in | 2,78 mm |
| T | 3/64 in | 1.19 mm |
| Y | 2-9/32 in | 57.92 mm |
| K | 8 in | 9,53 mm |
| W ds (UNF- Thread) | 1-15/ 16 in | 49,21 mm |
💡 ¿Para qué se utiliza un rodamiento de soporte fijo en la maquinaria?
In simple terms, a handy way to support a rotating shaft while keeping it aligned.
1) Supports rotating shafts in conveyors, pumps, and machines
2) Maintains alignment under load for smoother operation
3) Works with standard bore and locking screws for quick replacement
