81113M Thrust Roller 81113M 65x90x18mm Jaula de bronce

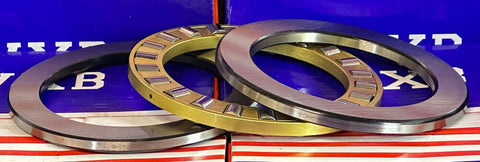

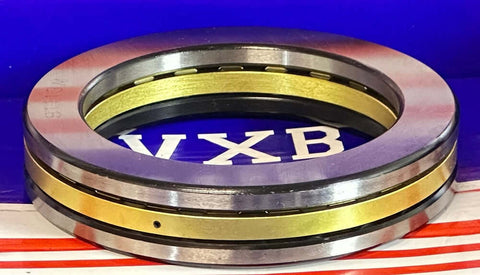

81113M Cylindrical Roller Thrust Bearing - Bronze Cage
✔️ 65mm ID x 90mm OD x 18mm Width - High Load Capacity
The 81113M is a single-direction cylindrical roller thrust bearing designed to handle heavy axial loads with minimal friction. It features a bronze cage for strength and stability under pressure, making it ideal for high-load vertical shafts, presses, and gear systems. Built with precision-ground rollers and rings for long-lasting performance. Sold as one bearing.
✅ Inner diameter: 65mm
✅ Outer diameter: 90mm
✅ Width: 18mm
✅ Jaula de bronce para una mayor durabilidad bajo esfuerzo axial
✅ Dynamic load rating: 107.000 N
✅ Static load rating: 340.000 N
✅ Limiting speed: 3700 RPM
✅ Pack size: 1 rodamiento
Tabla de Dimensions (en mm):
| d ID) | D OD) | TWidth) | D1 | d1 | r min | CaCr) | CoaCor) | Cua | NgRPM) |
|---|---|---|---|---|---|---|---|---|---|
| 65 | 90 | 18 | 67 | 90 | 1 | 107000 | 340000 | 34000 | 3700 |
💡 What makes cylindrical roller thrust bearings like 81113M ideal for axial loads?
They're designed for heavy-duty systems where axial force is dominant.
-
Los rodillos proporcionan una amplia superficie de contacto para un apoyo de baja fricción
-
Soporta cargas axial elevadas en una sola dirección
-
Bronze cage ensures precise roller alignment under pressure
-
Común en máquinas herramienta, prensas y conjuntos de ejes verticales
Fabricado para soportar el peso, añada el rodamiento 81113M a su configuración y deje que asuma la carga con confianza.
