VXB
Rolamento de esferas de contato Stainless Steel S7202C 15x35x11mm

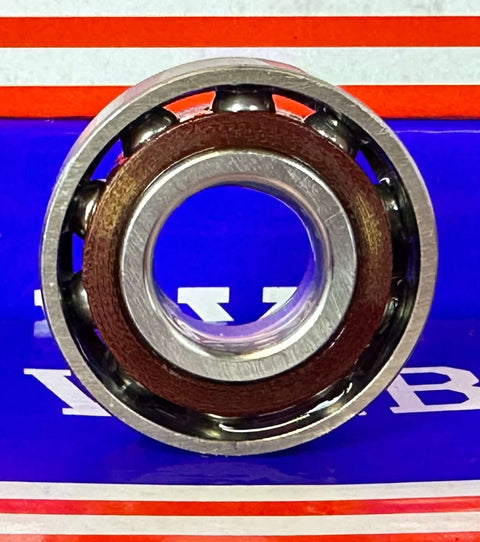

S7202C Angular Contact Bearing - 15mm ID x 35mm OD
✔️ Stainless Steel - 15° Contact Angle - P5 Precision - 11mm Width
The S7202C is a stainless steel angular contact ball bearing designed for high-precision, high-speed applications. With a 15° contact angle and P5-grade accuracy, it delivers excellent axial and radial load support in compact motor assemblies, pumps, and spindles. Its stainless steel build provides superior corrosion resistance for demanding environments.
✅ Type: Angular contact ball bearing
✅ Contact angle: 15°
✅ Inner diameter: 15mm
✅ Outer diameter: 35mm
✅ Width: 11mm
✅ Material: Stainless steel
✅ Precision grade: P5
✅ Dynamic load rating (Cr): 8.70 kN
✅ Quantity: 1 bearing
Dimensions:
| Inner Diameter | Outer Diameter | Width | Raio do canto r | r1 |
|---|---|---|---|---|
| 15mm | 35mm | 11mm | 06mm | 03mm |
💡 What makes angular contact bearings ideal for high-speed applications?
Angular contact bearings support both radial and unidirectional axial loads. Their specific contact angle enhances rigidity and speed performance, making them perfect for spindles, robotics, and precision drives.
Se a sua configuração exige tolerâncias rígidas, alta velocidade e manuseio confiável da carga, esse rolamento foi desenvolvido para atender a essa necessidade. Adicione-o ao seu sistema e deixe que o desempenho fale por si só!
