Módulo de roteadorCNC de Linear Motion de 12" - parafuso de esferas para serviço pesado - avanço 20mm

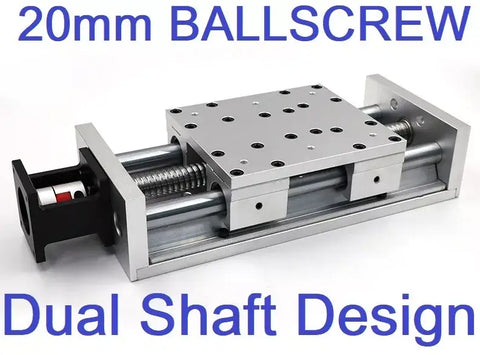

Heavy Duty CNC Linear Motion Guide with Ballscrew
✔️ 12" Stroke - Dual Axis CNC Router/Robot Module

This heavy-duty linear motion module combines SBR20 guideways with a 2020 ball screw for precision-driven performance in CNC routers, robotic arms, and automation setups. Designed for 12-inch travel, it supports both stepper and servo motors and delivers smooth, accurate linear movement at high speeds.

✅ Stroke Length: 12 inches (approx. 300mm)
✅ Type: Double-axis linear motion with integrated ball screw
✅ Ball Screw Specs: 2020 model with 20mm lead
✅ Guideways: SBR20 linear motion rails
✅ Max Speed: Up to 1,000mm/sec
✅ Accuracy: C7 grade for precision positioning
✅ Motor Compatibility:
✔️ 57 & 86 Stepper Motors
✔️ 100W, 200W, and 400W Servo Motors
✅ Design: Dual shaft for extra rigidity and stability

💡 What’s the benefit of using a ball screw in linear motion systems?
Ball screws offer highly efficient, low-friction translation of rotary motion into linear movement - providing precision, speed, and repeatability essential for CNC machines and robotics.

Ideal para construtores e engenheiros que precisam de movimento sólido como uma rocha, de alta velocidade e com precisão exata em projetos exigentes de automação industrial ou de bricolagem.
