VXB

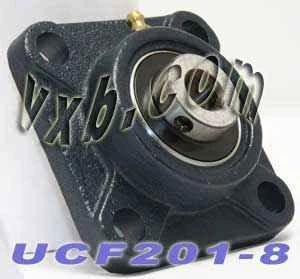

1/2 Bearing UCF201-8 + Square Flanged Cast Housing Mounted Bearing - Ball Bearing with a Flange

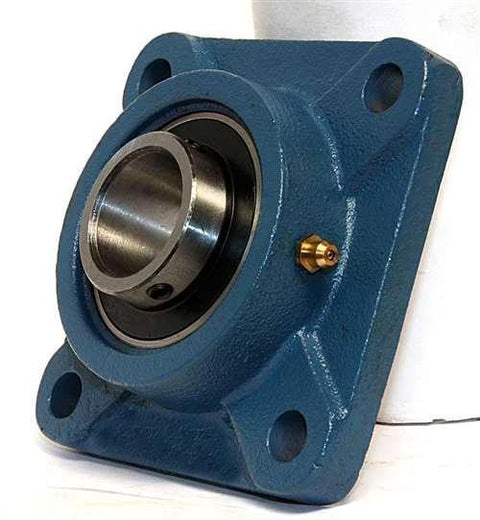

UCF201-8 Four-Bolt Flange Unit
✔️ Set-screw locking - 1/2" shaft size
This UCF201-8 is a rugged four-bolt flange unit built for smooth shaft support and easy mounting. It comes with a 1/2" bore set-screw locking insert, making it great for conveyors, machinery frames, light-duty drives, and general industrial equipment.
✅ Four-bolt flange housing (F204)
✅ Set-screw locking insert: UC201-8
✅ Shaft diameter: 1/2" inch
✅ Bolt size: 3/8" inch
✅ Basic dynamic load (Cr): 12.8 kN
✅ Basic static load (Cor): 6.65 kN
Pack size: 1 bearing
Dimensions inches):
| a | e | i | g | l | s | z | Bi | n |
|---|---|---|---|---|---|---|---|---|
| 3-3/8" | 2-33/64" | 19/32" | 15/32" | 1" | 15/32" | 1-5/16" | 1-7/32" | 1/2" |
💡 Why choose a set-screw flange unit?
Because set-screw locking grips the shaft quickly and securely, perfect when you want simple installation without adapters or complex locking devices.
-
Easy to mount and tighten
-
Reliable holding power for low-to-medium speeds
-
Works well in conveyors, small motors, and general machinery
Solid, simple, and built to keep your shaft running smoothly.
