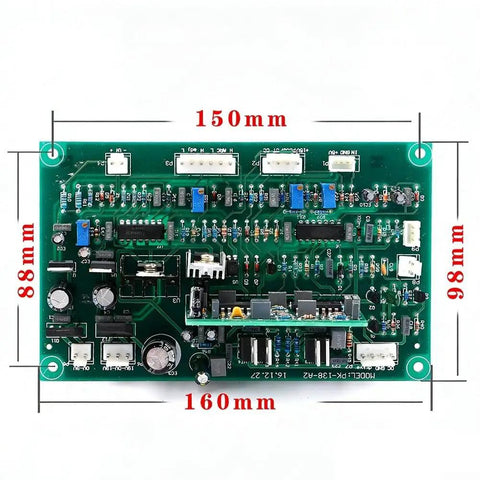

ZX7 315 400 500 Welder Main Control Board Direct Replacement For PK138 A2 Single Tube DC Welder Beefed Up Plug And Play Replacement Circuit Board For Seamless Fit And Reliable Under Load Performance
This direct replacement main control board is designed for 315/400/500 single-tube DC welders, providing seamless integration without modification. It matches OEM mounting points and supports standard I/O connections for PK138-based machines.
✅ Direct replacement for PK138: exact-fit main control board for 315/400/500 single-tube DC welders
✅ Stable performance under load during extended welding cycles
✅ Optimized PCB layout minimizes signal noise and EMI for reliable ignition
✅ Full interface compatibility with power, drive signals, and I/O matching OEM harnesses
✅ Standard FR-4 substrate construction with industry-standard trace routing
💡 What is a main control board used for in PK138-based DC welding systems and why replace it?
The core function is to manage power timing and input/output to keep the welder running reliably.
- Maintains arc ignition timing and steady current under load- Ensures plug-and-play compatibility with OEM wiring harnesses
- Reduces electrical noise and EMI for consistent welding performance
- Uses FR-4 substrate with standard PCB trace routing for durability✝️
