Zero Point Plate Quick Clamp System 180mm Diameter For Heavy Duty CNC And Mold Making, 96x96 Hole Grid D96-C, Accurate Repeatability 0.005mm And 0.01mm At 45 And 90 Degree Rotations, Perfect For Big Machining Jobs
✔️ ±0.005mm repeatability, ±0.01mm at 45°/90°, 20kN clamp, 27mm
This heavy-duty plate clamp system provides precise repeatability (±0.005mm) and quick 360° tool changes for large mold making, aerospace parts, and multi-axis CNC work. The oversized 96x96 mm hole grid on 58-62 HRC alloy steel ensures <0.005mm positional accuracy, supporting heavy fixtures and multi-tool setups.
✅ Large precision ±0.005mm repeatability and ±0.01mm at 45°/90° rotations; ideal for large mold making and multi-axis machining.

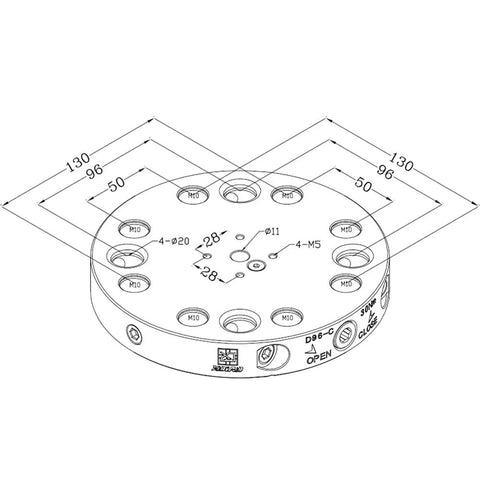

✅ Oversized 96x96 mm hole grid on 58-62 HRC alloy steel ensures <0.005mm positional accuracy for heavy fixtures.

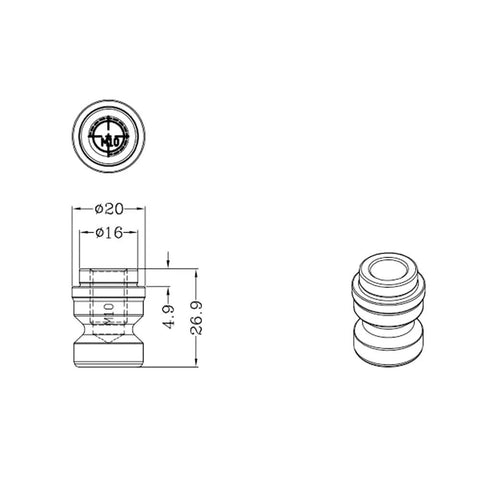

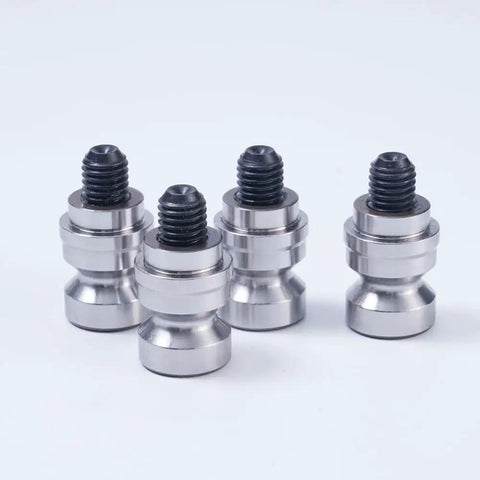

✅ 20kN (4,496 lbf) clamping force; 4 pull studs with 30 Nm torque lock large tools securely; stable up to 20,000 RPM.
✅ Rapid 360° tool swaps; Ø180mm round design enables full rotation; change tools in 3 seconds.

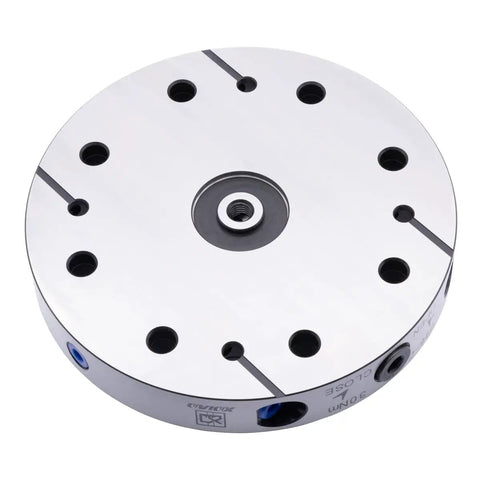

✅ Low-profile 27mm height; coolant-resistant hard-anodized finish.
💡 What is a heavy-duty plate clamp system used for in big CNC and mold making?
This handy piece provides rigid holding of large fixtures and enables fast, repeatable tool changes on big machines.
- handy for securing large molds and aerospace parts with precise alignment
- reduces downtime by enabling rapid tool changes during complex jobs

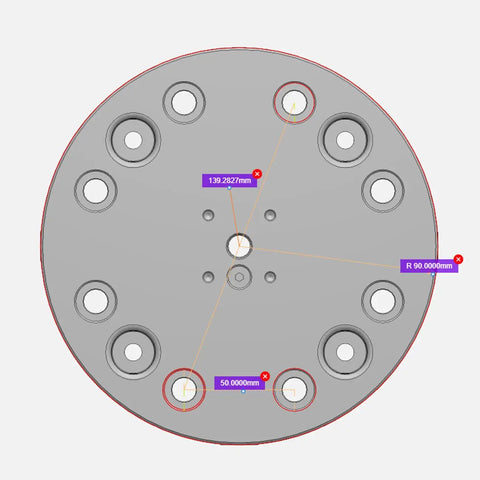

- supports 180mm diameter clamps and 96x96 hole grid for rigid fixtures
