Zero Play 3 Jaw Chuck With Heavy Duty Tailstock And Precision Dividing Plates, Vertical Horizontal Rotary Indexing Head Kit For Job Shop Ready CNC Milling Setup

Precision Rotary Indexing Head Kit With Chuck For Milling Use
✔️ Cast iron housing, 160 mm (6.3 in) chuck, tilts 10 to 90 degrees setup

This rotary indexing head mounts directly onto a machining table to split workpieces into equal angular segments. Metalworkers and job shop technicians rely on the heavy cast iron base for steady positioning during face milling, slot cutting, and repetitive drilling runs. The direct drive mechanism pairs smoothly with replaceable dividing plates to handle angled part faces without manual layout marking or extra fixturing steps.

✅ Wear-resistant cast iron housing dampens vibration and protects machined surfaces
✅ Replaceable direct indexing plates deliver quick 2-degree to 24-degree division splits

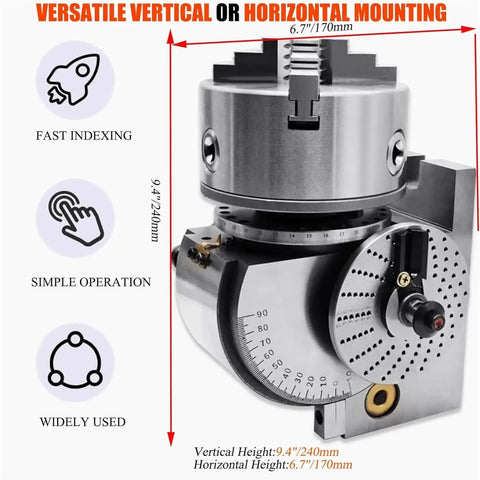

✅ Tilting handwheel shifts the head from 10 degrees up to 90 degrees on command
✅ Laser-engraved scales lock alignments while the internal gear ratio maintains strict stops
✅ Six-inch center bore jaws clamp round blanks securely for continuous production cycles

💡 What role does a precision rotary indexer play when setting up angular cutter passes on a mill? Using a solid dividing head system remains handy for shops that need repeatable angle splits without custom fixtures.

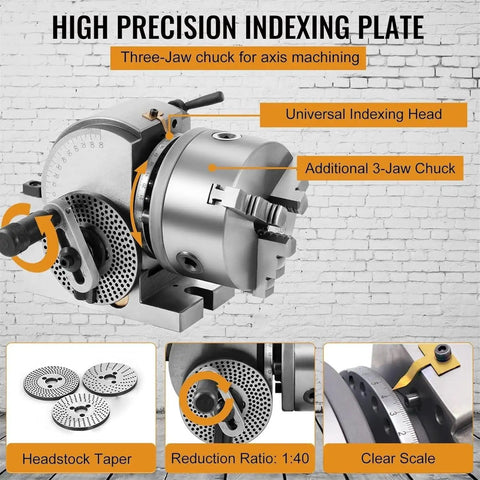

- The 1:40 worm gear ratio keeps the spindle locked tight against heavy feed forces

- Graduated dial readings remove guesswork when facing slots or drilling stepped patterns

- Direct indexing mode lets operators drop pins into preset holes for fast multi-sided cuts

- Stable tilt range handles shoulder ramps and bevel geometry straight through the toolpath
