Concealed Hinge Jig For Cabinets And Doors, Heavy Duty Metal Hinge Jig With Quick Clamp, Dust Vacuum Adapter, And 35mm Concealed Door Hinge Drilling Tool For Woodworking Cabinet Mounting And Precise Installations

Achieve precise, repeatable concealed hinge installations with the Concealed Hinge Jig for Cabinets and Doors. Built from heavy-duty metal, this tool is designed to withstand years of use in busy shops while delivering clean, accurate 35mm hinge drilling every time.

• Heavy-duty durability with smooth drilling: integrated double bearings keep the 35mm hole guide running true, so you get drill-press accuracy even if you’re not a pro. The carbide-tipped bit slices through hardwood and plywood cleanly in seconds.

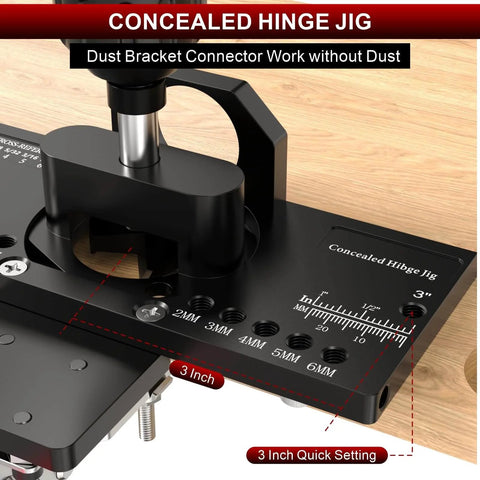

• Integrated dust control for a cleaner workspace: a metal dust port fits most shop vacuums (1-3/8" hoses) to trap wood chips as you drill, reducing cleanup and improving drilling accuracy by keeping chips from interfering with the guide.
• Fast, repeatable setup: quick depth adjustment for 35mm hinges and a fast-release clamp that secures to cabinet doors in under 3 seconds, letting you install multiple doors with minimal downtime.
• All-in-one versatility for common hinge and panel types: supports hinge offsets 2-6 mm and includes drill guides for four screw hole patterns: 42x11 mm, 48x6 mm, 52x5.5 mm, and 45x9.5 mm, making it suitable for a wide range of cabinet projects.
• Wide application: ideal for kitchen cabinets, closets, new installs, or hinge replacements. Works with 1/2" overlay hinges and more, giving you flexibility across projects.
• Important notes: The drill bit does not indicate the precise depth, measure the hole depth yourself. Installation is not included; please refer to the usage and installation video before use.

Who it’s for: DIY homeowners updating kitchens or closets, professional cabinet makers, and shop pros who value consistent hinge alignment and faster install times. If you’re tired of misaligned cabinets, repeated drilling adjustments, and dusty workspaces, this jig helps you achieve flawless concealment with less effort.

How it helps you save time and improve results: By combining robust metal construction, precise 35mm drilling, and a dedicated dust collection system, you can batch-install multiple doors with the same hinge spacing, ensuring uniform gaps and clean lines across all panels. The quick clamp reduces setup steps, while the four drill guides cover common hole patterns, so you don’t need separate jigs for each job.

Color: Black.
