API 601 Spiral Wound Gasket 2 Inch 400 Class Flange With 304 Stainless Windings and Flexible Graphite Filler Yellow Band Gray Stripe Built Tough for High Temperature Thermal Cycling and Pressure Swings Centering Ring ASME B16.20 B16.5 Compatible
✔️ 2in (50.8 mm) gasket, 304SS windings, flexible graphite filler

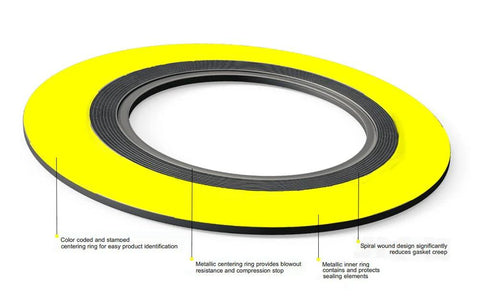

This spiral wound gasket is designed for ASME B16.20 and B16.5 flange assemblies, especially Class 400 flanges. The centering ring accurately locates the gasket on the flange face, adds radial stiffness, and acts as a compression limiter. The winding combines metal with a soft filler to deliver a tight seal across a wide temperature range, making it ideal for high-temperature thermal cycling and pressure swings in piping systems. Yellow band with gray stripe aids quick orientation and proper seating in ASME flange connections.
✅ 2 in (50.8 mm) pipe size on 400# flange with 304SS windings✅ Flexible graphite filler for broad temperature tolerance
✅ Temperature range: -150 to 842 °F
✅ Centering ring for precise seating and compression control
✅ Spiral wound construction (metal windings + soft filler)

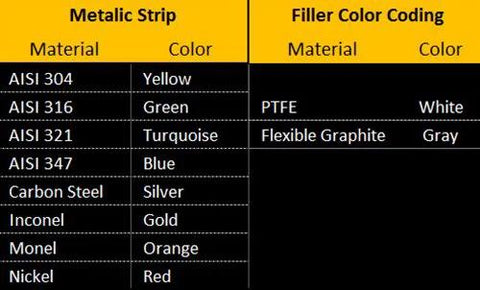

✅ Color: yellow band with gray stripe for quick orientation
✅ Durable, easy to install and remove
💡 What is a spiral wound gasket used for in high temperature piping systems? This gasket is a handy seal for heavy duty flange joints in steam, hot water, and chemical service, especially on ASME B16.20 / B16.5 Class 400 connections. - Commonly used on steam lines, hot water systems, and chemical process piping - Provides reliable sealing through thermal cycling and pressure swings - Centering ring helps precise seating and reduces leakage
