ASME B16.20 Spiral Wound Gasket Half Inch Pipe Size 400 Class With Gray Stripe Yellow Band 304 Stainless Windings and Flexible Graphite Filler Built For Tough Temps Thermal Cycling And Pressure Variations No Nonsense
✔️ ASME B16.20 gasket, 304SS windings, graphite filler, single unit
This sealed spiral wound gasket is designed for 1/2" piping on ASME B16.5 Class 400 flanges, featuring 304 stainless windings and flexible graphite filler for tough temperatures and thermal cycling. Pack: 1 unit.
✅ Size: 1/2 in (12.7 mm) pipe size
✅ Flange: ASME B16.5 Class 400
✅ Windings: 304 stainless steel

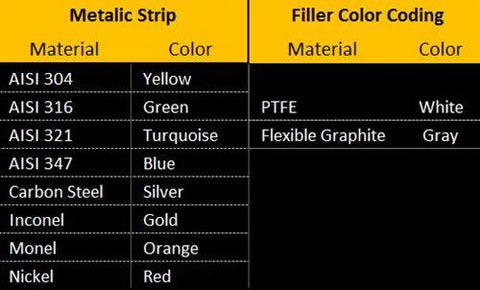

✅ Filler: Flexible Graphite, Yellow Band with Gray Stripe
✅ Temp range: -150 to 842 F

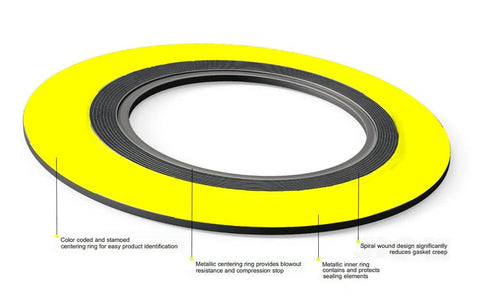

✅ Centering ring included for alignment and compression limiter
✅ Color: Yellow Band with Gray Stripe
💡 What is a spiral wound gasket used for in standard piping systems? The handy sealing solution for high-temp, high-pressure flange joints in many industries. - It seals ASME B16.5 Class 400 joints effectively under thermal cycling - Combines metal windings with soft graphite filler for resilience - Centering ring ensures accurate gasket location and even compression
