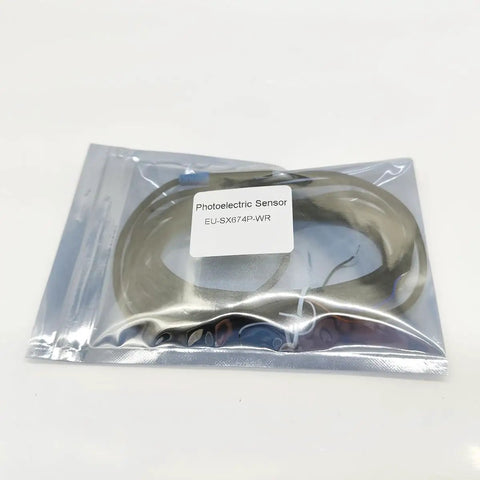

Y Type SX674 PNP Photoelectric Sensor For Hollow Rotary Actuator With 2 Meter Cable, Pro Grade Non Contact Sensing For Automated Machinery, Fast Response And High Reliability, Perfect Fit For Rotary Systems And Grinders

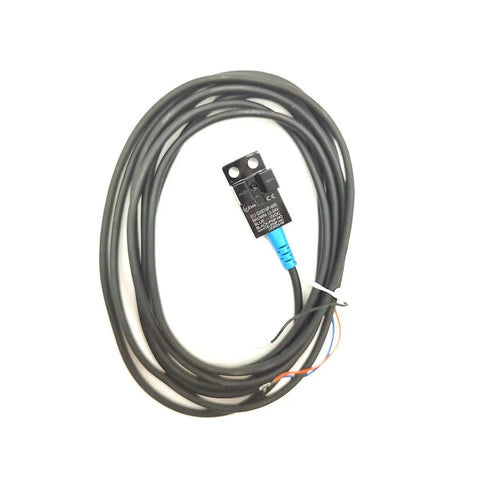

✔️ 2 m cable (6.5 ft), IP65, dual outputs, 5 mm sensing, 940 nm IR
The Y-Type SX674 is a PNP photoelectric sensor designed for hollow rotary actuators used in automated machinery. It delivers reliable non-contact sensing in rotary systems and grinders, with two independent outputs for flexible control.
✅ Detection distance: 5 mm (groove width)
✅ Detects 1.2x2.0 mm opaque objects
✅ Light source: GaAs infrared LED (940 nm)
✅ Response frequency: 2 kHz
✅ Power supply: DC 12-24 V

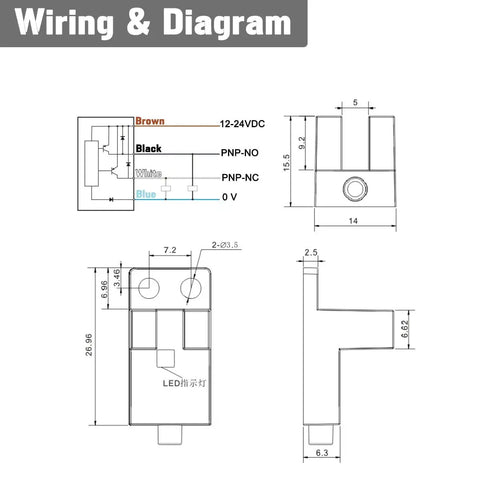

✅ Output: two independent outputs (ON when blocked, ON when received)
✅ Repeat accuracy: 0.03 mm
✅ Protection: surge, reverse polarity, short circuit
✅ Ambient temperature: -25 to 60°C
✅ Storage temperature: -30 to 80°C
✅ Humidity: 5-85% RH (working); 5-95% RH (storage)
✅ Illuminance tolerance: below 1000 Lx on light-receiving surface
✅ Insulation resistance: >20 MΩ (DC 250 V)
✅ Withstand voltage: AC 1000 V 50/60 Hz, 1 min
✅ Vibration: 10-55 Hz, 1.5 mm amplitude, XYZ directions for 2 h
✅ Protection: IP65
💡 What is a photoelectric sensor used for in hollow rotary actuator systems?
It's handy for non-contact feedback in rotating machinery and grinders.
- Non-contact position sensing in rotary systems- Detects small opaque targets with 940 nm infrared light
- Dual outputs for ON when blocked or ON when light is received
✝️
