XY Linear Stage 40x40mm Aluminum Manual Precision Slide Platform For Micro Projects, 0.5mm Per Turn Knob, 7mm Travel, 30 Micron Straightness, 27.4N Load, Sliding Table Ruler, Lab Ready CNC Friendly For Precision Builds

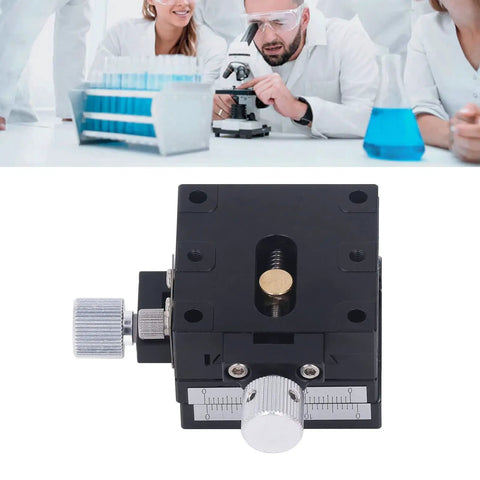

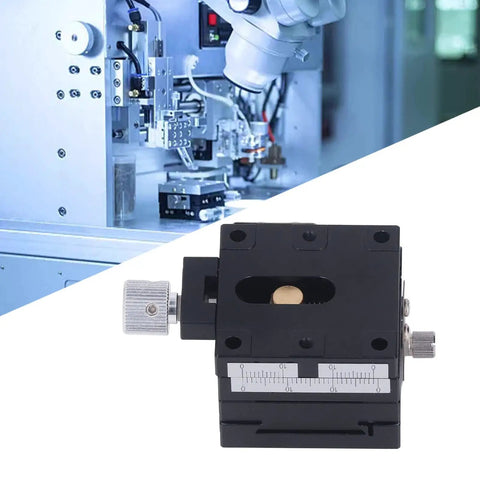

Single 40x40mm Aluminum XY Linear Stage for Precision Motion
✔️ 40x40 mm table, ±7 mm travel, 30 μm straightness, 27.4 N load

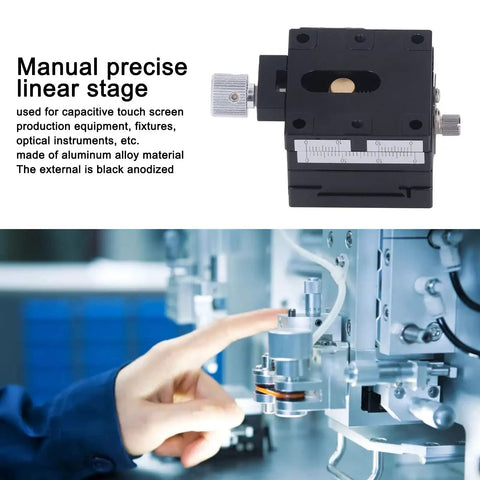

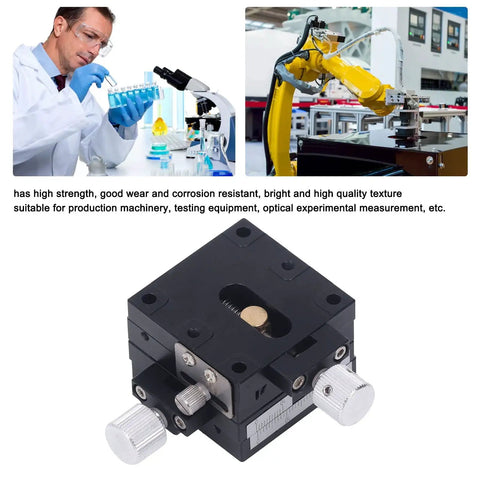

This manual precise linear stage is a compact 40x40 mm precision platform designed for micro-positioning in labs, CNC setups, and optical assemblies. Built from aluminum alloy with a black anodized finish, it delivers rigid support and reliable, repeatable motion for small-scale experiments and machining tasks.

✅ Sliding table size: 40x40 mm (1.6x1.6 in)
✅ Movement: ±7 mm
✅ Knob pitch: 0.5 mm per turn
✅ Load capacity: 27.4 N
✅ Straightness: 30 μm; Orthogonality: 70 μm

💡 What is a linear stage used for in precision positioning and micro-assembly?

This handy device enables accurate, repeatable linear motion for small parts and optical setups.

• optics alignment and micro-assembly tasks
• manual or CNC control for tight positioning
• rigid aluminum body minimizes deflection
• compact footprint fits crowded benches
