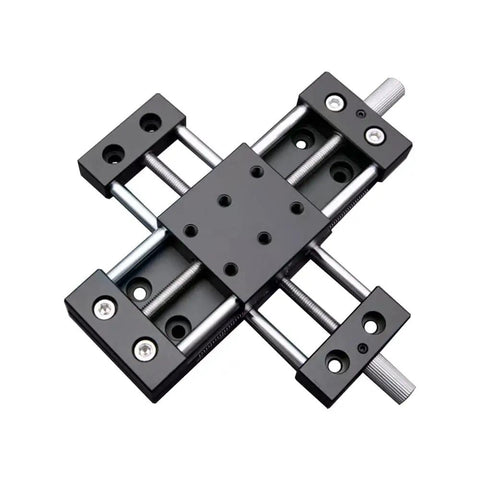

Workhorse XY Axis Manual Stage Sliding Table 40x40mm With 50mm Max Stroke For Precision Machining And Alignment In Your Shop Aluminum 6061 Body GRC15 Bearing Steel Black Anodized Finish Smooth Travel And Easy Knob Control

Precision XY Axis Manual Stage 40x40mm with 50mm Stroke
✔️ Pack: 1 unit, 40x40mm XY stage with 50mm stroke, AL6061 body

This XY axis manual stage provides precise two-axis positioning for machining, alignment, and inspection tasks in workshops and labs. Built from AL6061 with a black anodized finish and GRC15 bearing steel for durable, smooth travel.

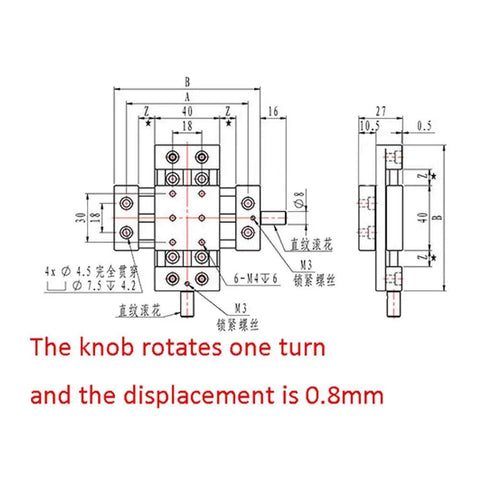

✅ Table size: 40x40 mm
✅ Maximum stroke: 50x50 mm
✅ Travel: Z 25 mm; A 105 mm; B 120 mm
✅ Load capacity: 4 kgf
✅ Weight: 310 g

💡 What is the main use of a XY axis manual stage in precision machining?

These handy stages provide precise two-axis positioning for machining, alignment, and inspection tasks.

- Handy for precise two-axis alignment with repeatable results - Smooth travel and long life with AL6061 body and GRC15 bearing steel - Easy integration with standard fixtures in a linear slide unit
