Workhorse Rotary Indexing Head With Three Jaw Chuck And Separate Tailstock For No Sweat Alignment During Precision Milling Drilling Tasks Eight Inch Version

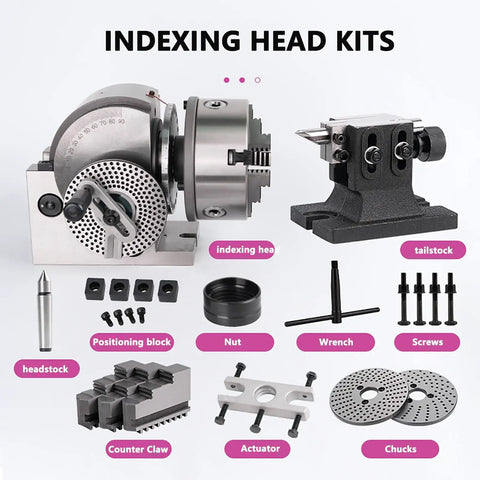

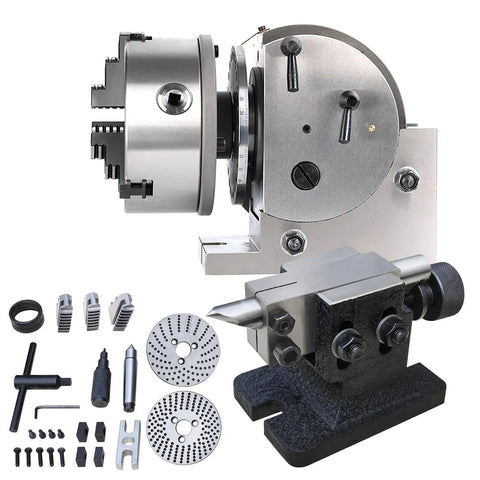

✔️ Cast Iron Build 1 90 Ratio 3 Jaw Chuck Plus Tailstock

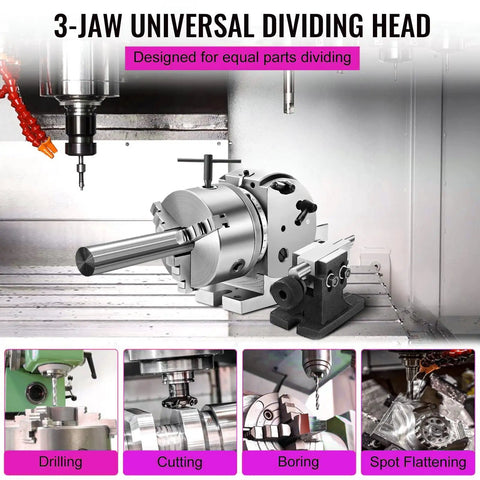

This rotary indexer mounts directly onto milling drill or boring machine tables to secure workpieces for accurate angular cuts and curved machining operations. Machinists rely on this setup across automotive repair mold fabrication and general metalworking shops to maintain tight tolerances during repetitive drilling and dividing tasks.

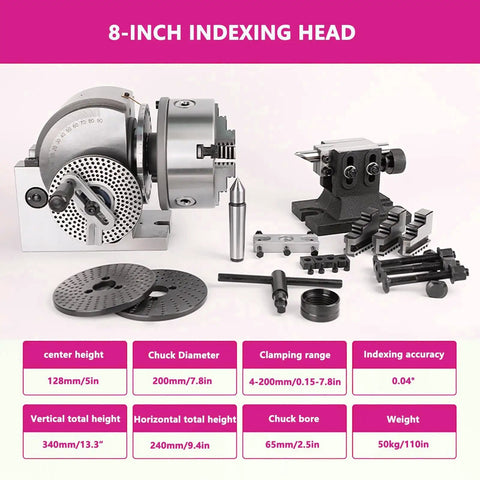

✅ Center height measures 100 mm (3 9 in) up to 128 mm (5 0 in) depending on model size
✅ Three jaw chuck ranges from 100 mm (4 in) to 200 mm (8 in) diameter for steady part holding
✅ Gear reduction settles at 1 90 while adjustable clamping covers 2 mm to 200 mm spans

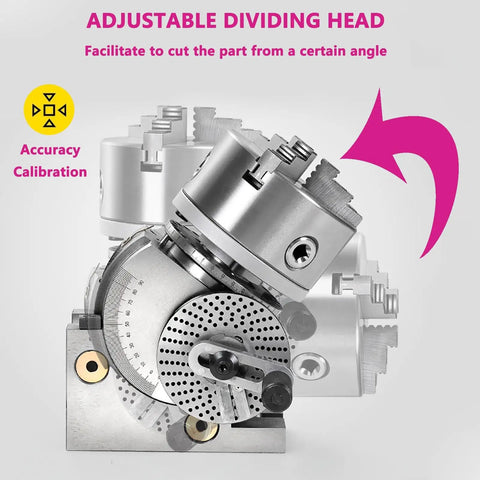

✅ Universal tilt head swivels negative ten degrees down to ninety degrees vertical
✅ Solid cast iron housing weighs between twenty two kg and fifty kg for vibration dampening
💡 What makes a universal manual indexing head handy for complex milling and drilling applications?

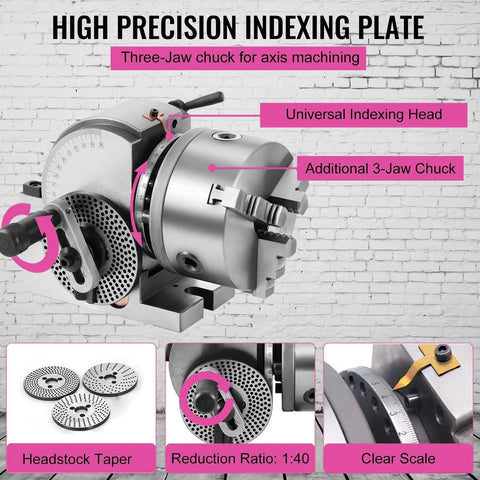

Choosing the right angular positioning fixture keeps your cuts consistent and saves serious shop floor headaches. The precision worm gear mechanism delivers repeatable accuracy without expensive electronics or software calibration. - Direct dividing plates allow you to mark sixty or forty eight equal points around any round stock quickly - Mounting an auxiliary tailstock eliminates spindle wobble so slender bars stay rock solid during heavy feeds - Multi axis tilt capabilities let you run compound angles and tapered surfaces without realigning the whole setup ✝️
