WA32-24PD NB Stainless Steel Shaft 24 inch Length Linear Motion
$252.99
SKU: WA32-24PD-NB
UPC: 00193019133835
UPC: 00193019133835
NB NB Shaft Support Rail
Shaft Diameter: 2" inch
Length: 24" Inch
Material: Aluminum Alloy
Shaft Diameter: 2" inch
Length: 24" Inch
Material: Aluminum Alloy

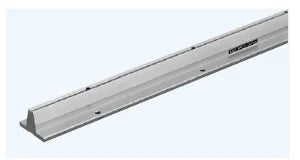

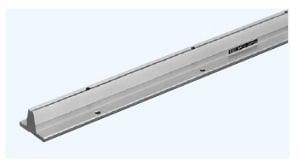

| WA32-24PD NB Shaft Support Rail:NB Linear Systems 24" Inch (609.6mm) Length 2" inch Diameter Shaft |
WA32-24PD NB Shaft Support Rail, 2" Diameter x 24" inch Long Shaft.
|

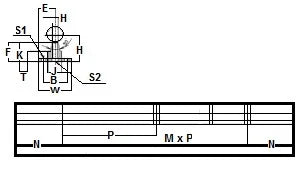

| Major dimensions | Mounting dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | E | W | F | T | K | J | h1 | B | N | MxP | S1 | S2 | ||
| hole | bolt | hole | bolt | |||||||||||
| 3-1/4" | 1-7/8" | 3-3/4" | 2-21/64" | 1/2" | 1-29/64" | 1-1/2" | 13/16" | 2-3/4" | 4" | 2x8 | 13/32 | 3/8" | 17/32" | 1/2 |
