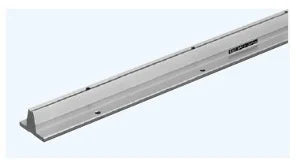

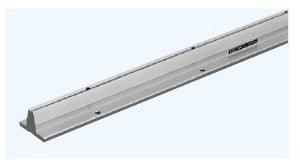

WA10-24PD NB Stainless Steel Shaft 24 inch Length Linear Motion

$115.99
SKU: WA10-24PD-NB
UPC: 00193019133798
NB NB Shaft Support Rail
Shaft Diameter: 5/8" inch
Length: 24" Inch
Material: Aluminum Alloy

WA10-24PD NB Shaft Support Rail:NB Linear Systems
24" Inch (609.6mm) Length
5/8" inch Diameter Shaft


WA10-24PD NB Shaft Support Rail, 5/8" Diameter x 24" inch Long Shaft.

  • NB NB Shaft Support Rail
  • Shaft Diameter: 5/8" inch
  • Length: 24" Inch
  • Material: Aluminum Alloy

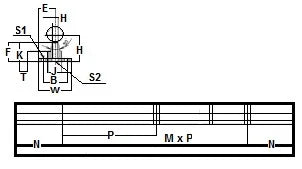

Major dimensions Mounting dimensions
H E W F T K J h1 B N MxP S1 S2
hole bolt hole bolt
1-1/4" 13/16" 1-5/8" 27/32" 1/4" 27/64" 1/2" 17/64" 1-1/8" 2" 5x4 13/64" 8 13/64" 8
