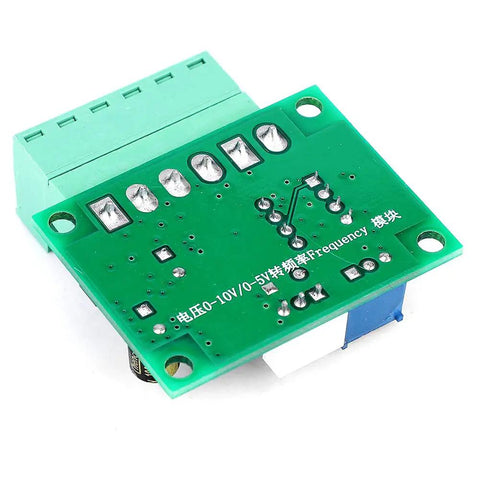

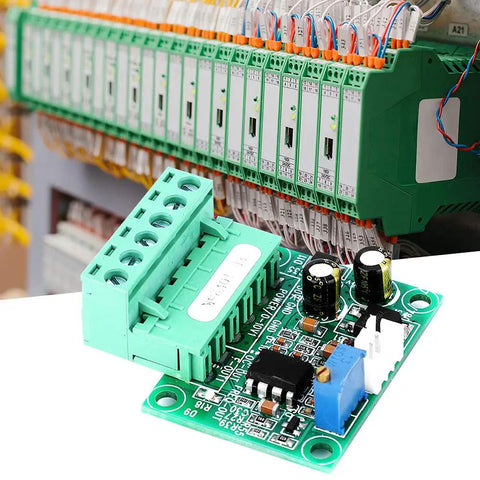

Voltage Frequency Converter Module 0-10V Output 0-25KHz Timing Control For PLCs Industrial Panels, Pro Grade Inverter Interface, Durable Electronic Component Built For Precise Automation Systems
✔️ Pack: Single Unit, 0-10V input, 0-25KHz output for standalone use
The VF-10V25KHz voltage frequency converter module converts a 0-10V control signal into a frequency output up to 25KHz. It’s designed for industrial panels, PLCs, inverter interfaces, and motion control cards, giving you precise drive control in automation setups.
✅ Model: VF-10V25KHz
✅ Input Control Voltage Range: 0-10VDC
✅ Input Power Range: 12-30VDC (recommended 15-24VDC)
✅ Current Requirement: >30mA
✅ Mounting: 4 x M3 screw holes
✅ Size: 47 x 45 x 17 mm / 1.9 x 1.8 x 0.7 in
✅ Package: 1 x Voltage Frequency Converter Module

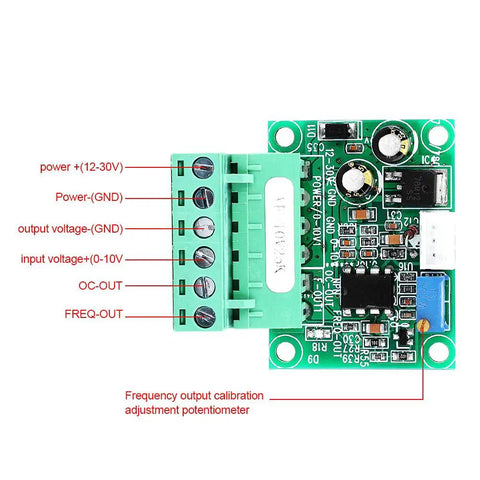

✅ Wiring: 0-10V input to +, GND common, 12-30V power input; OC-OUT and FREQ-OUT; two independent outputs with resistor guidance
✅ Color: multicolor
💡 What is a voltage frequency converter module used for in automation systems?
This handy device maps a 0-10V control signal to a frequency output suitable for drive interfaces.
1) 0-10V to 0-25KHz mapping for precise motor speed control 2) Handy bridge between PLCs, motion controllers, and inverters 3) Simple wiring with silk-screen marks for quick setup
