Vixen Style Dovetail Telescope Mounting Plate 230mm Rail Bar With M6 And Quarter Inch And Three Eighth Inch Screws For Saddle Mount Base OTA Equatorial Head Tripod Sky Astrophotography

Premium Vixen Dovetail Plate 230mm Rail for Telescope Mounts

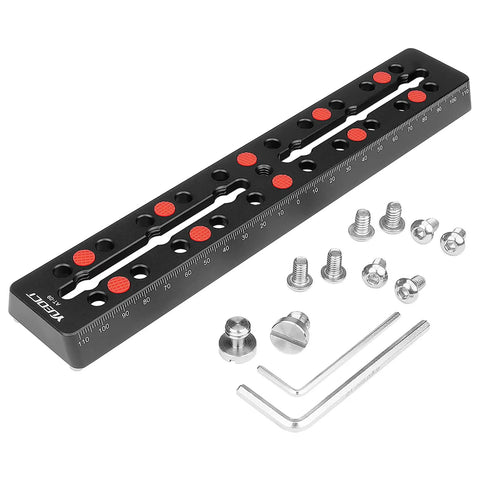

✔️ 230mm dovetail rail bar with M6 1/4 inch and 3/8 inch mounting holes

This vixen style dovetail plate serves as a sturdy mounting rail for attaching telescope tubes to saddle mounts on equatorial heads during astrophotography sessions.

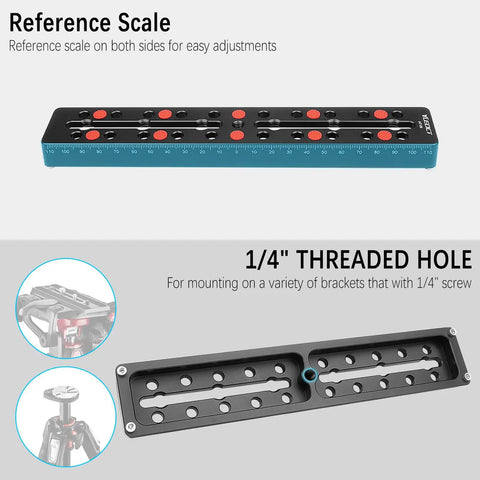

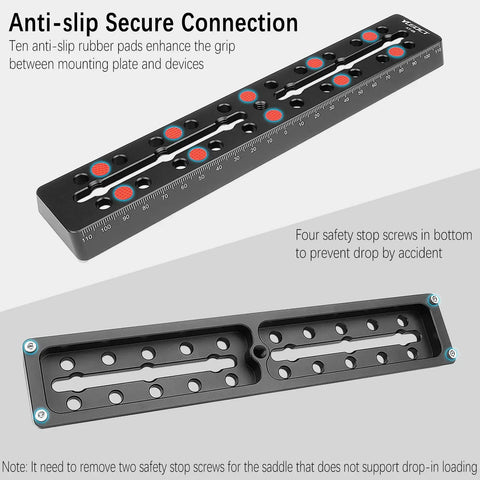

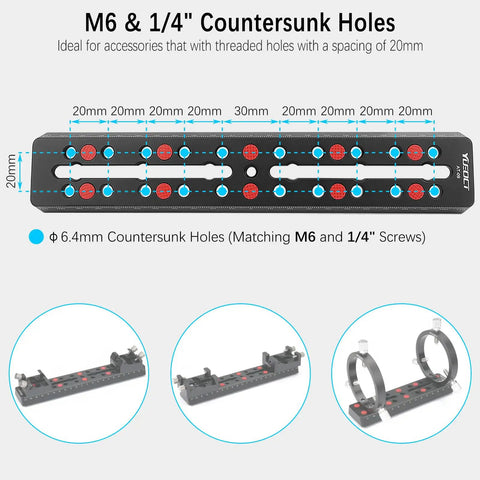

✅ 230mm length with two 87.6mm (3.45 inch) slots that are 6.4mm wide ✅ Three 3/8 inch threaded holes per slot spaced 35mm (1.38 inch) apart ✅ Ten pairs of countersunk 6.4mm holes spaced 20mm (0.79 inch) for M6 and 1/4 inch screws ✅ Center 1/4 inch threaded hole plus ten anti slip rubber pads and four safety stops

💡 How do you mount telescope tubes safely to equatorial tripod heads for sky viewing sessions? A dovetail rail gives a quick release connection that keeps the setup balanced and stable. - Fits standard vixen saddles on most equatorial mounts used in backyard astronomy - Offers multiple hole patterns so accessories line up without extra adapters - Rubber pads stop slipping while safety screws prevent accidental drops during use - Works for balancing cameras or guidescopes when shooting long exposure images

✝️
