Vibration Meter VM-424 With Remote Probe For Motors And Gearboxes, A Real Workhorse Tool With Precise 0.1-199.9 m/s2 Acceleration, 0.1-199.9 mm/s Velocity, 0.001-1.999 mm Displacement, 10 Hz-3 kHz Magnetic Sensor
✔️ Measures acceleration, velocity, and displacement precisely

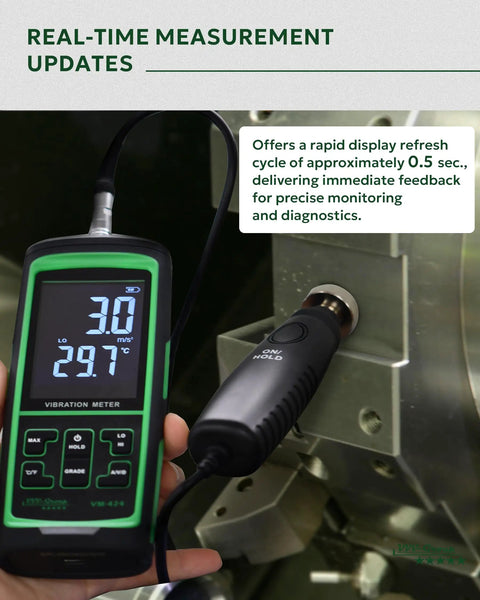

The VM-424 is a rugged handheld vibration meter with a remote sensor probe, designed for vibration measurement on motors, pumps, gearboxes, and other rotating machinery where direct placement of a handheld meter is difficult. The external sensor lets you position the probe on bearing housings, pump casings, and motor frames while the display stays in view for easy readings.

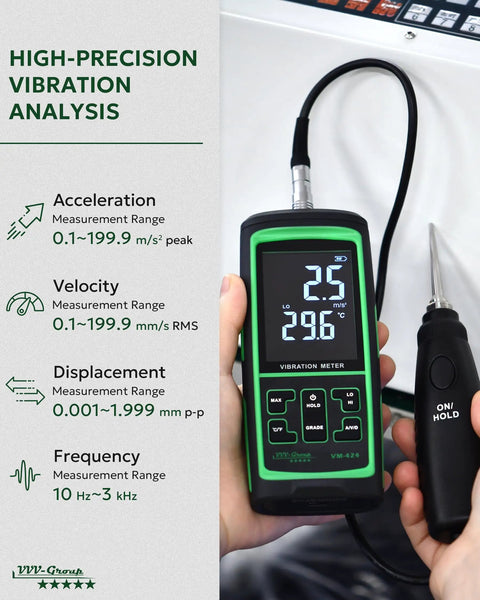

✅ 3-in-1 vibration measurement: Acceleration 0.1-199.9 m/s2 (peak), Velocity 0.1-199.9 mm/s (RMS), Displacement 0.001-1.999 mm (p-p)

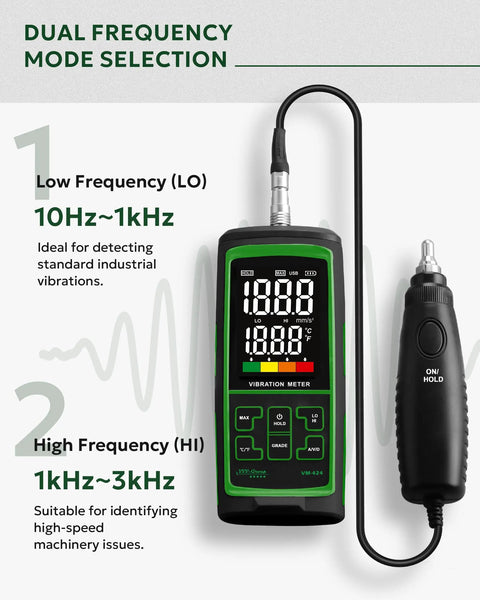

✅ Dual frequency acceleration modes 10Hz-1kHz and 1kHz-3kHz
✅ Remote piezoelectric sensor enables stable contact measurement

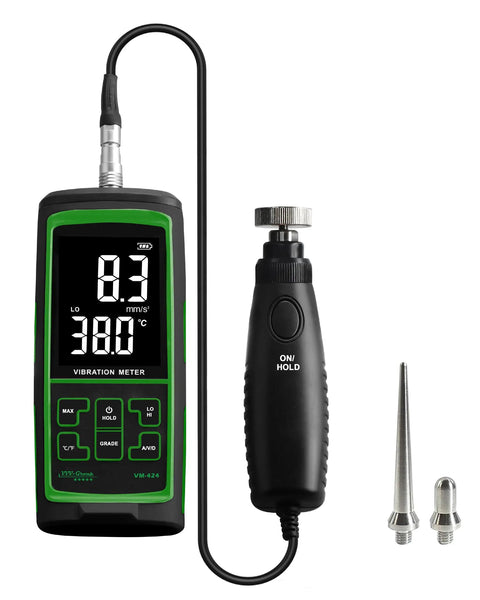

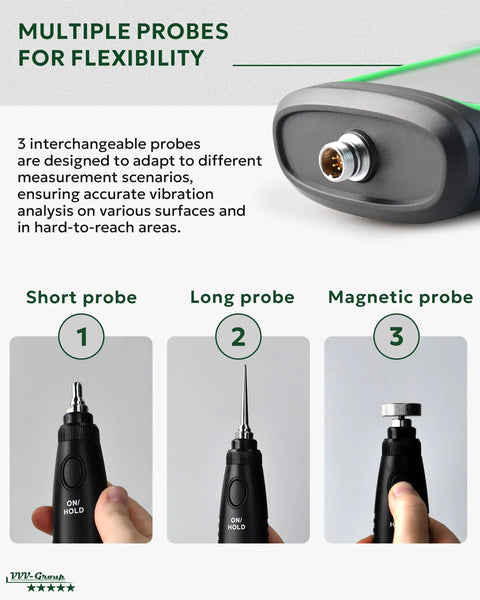

✅ Interchangeable probe tips: magnetic base, short, long

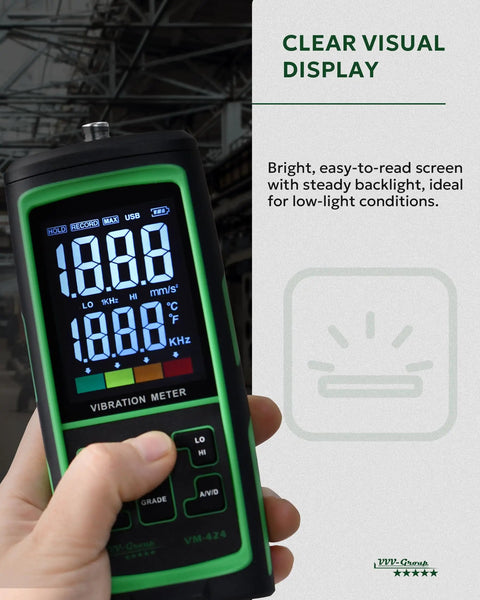

✅ Backlit LCD with data hold and max hold
✅ Designed for routine machine inspection workflows
✅ Color: Black/Green
💡 What is a hand-held vibration meter used for?
This handy tool helps technicians screen machine health and spot abnormal vibration during routine maintenance checks. - It provides real-time data on acceleration, velocity, and displacement - It helps with preventive maintenance rounds and condition monitoring - It works with a remote sensor to reach tight spots while keeping the display readable - It is ideal for motors, pumps, gearboxes, and fans in industrial plants
