VFD 5.5kW 7.5HP 380V Inverter Drive Built For Single Or Three Phase Input 0 To 3000 Hz Output Variable Frequency Control For CNC Spindle Motors Pro Grade Speed Controller
✔️ Output 0-3000 Hz, 5.5 kW, 380V input, single or 3-phase

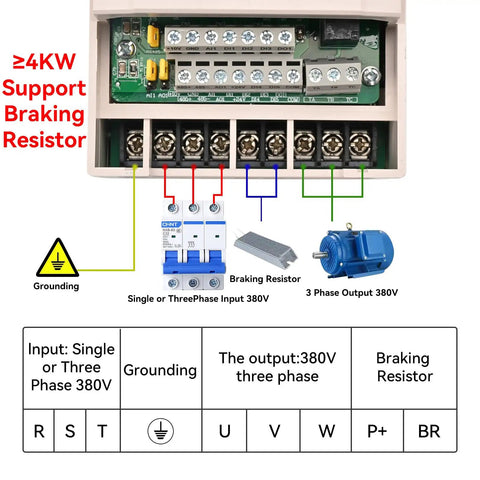

This VFD is a high-power speed controller for CNC spindles and other motors. It accepts a 380V input and can operate with single or three-phase power, delivering a three-phase output suitable for CNC routers, milling machines, drilling rigs, and other automation tasks.
✅ Power: 5.5 kW (7.5 HP)
✅ Input voltage: AC 380V (±15%)
✅ Output voltage: AC 380V
✅ Input frequency: 50/60 Hz
✅ Output frequency: 0-3000 Hz
✅ Input phase: Single or Three
✅ Output phase: Three-phase

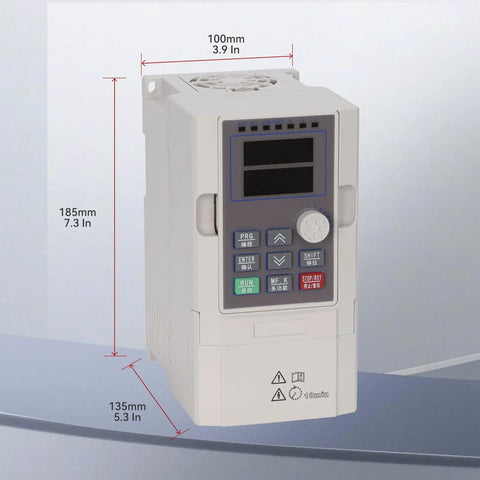

✅ Size: 135x185x100 mm (5.3x7.3x3.9 in)
✅ Communication: RS485 with MODBUS support

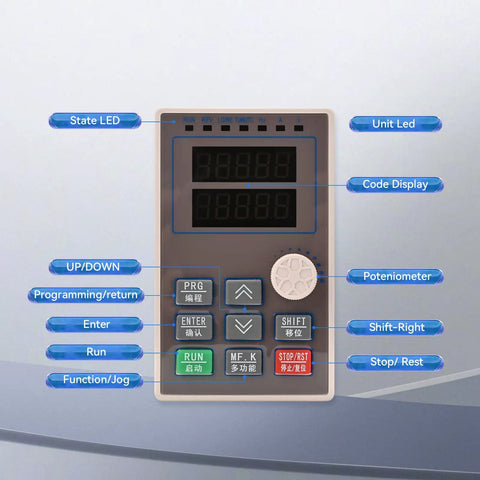

✅ Display: Smart digital display with detachable remote control
✅ Typical applications: CNC routers, milling machines, conveyors, pumps, compressors
💡 What is a VFD speed controller used for in CNC systems and how does a 0-3000 Hz output help?
VFDs adjust speed and torque by varying drive frequency and voltage, enabling precise spindle control and energy efficiency.
- Handy for precise spindle speed control in CNC machines- Wide speed range from low to high RPM for different tooling
- Easy integration with single or three-phase power and MODBUS capable controllers
