Vertical Rod Anchor Screw With Three Eighths Inch Threaded Rod Fitting For Metal Deck Nut Free XPress Securement In Galvanized Steel With Zinc Coating 25 Pack
Regular price
$214.88
Sale price$340.00you save $125.12

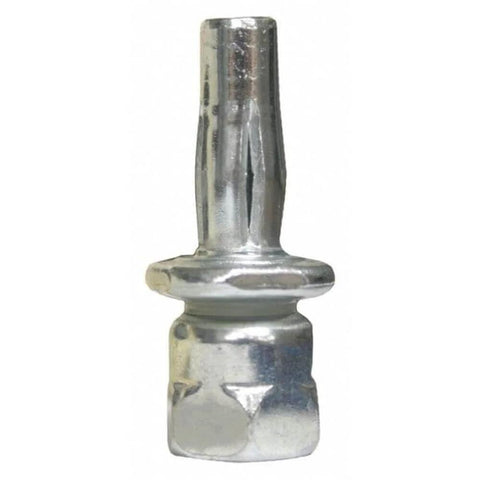

Nut-Free X-Press Rod Anchor Screw for 3/8 in Steel (25 Pack)
✔️ Galvanized steel with zinc coating; 1 in length; 25/64 in anchor
✅ Anchor diameter: 25/64 in (9.92 mm)
✅ Drill bit size: 25/64 in (9.92 mm)
✅ Thread size: 3/8-16 in (9.525 mm)
✅ Minimum material thickness: 1/8 in (3.175 mm)
✅ Maximum load capacity: 1146 lb (520 kg)
✔️ Galvanized steel with zinc coating; 1 in length; 25/64 in anchor
This nut-free X-Press anchor screw is designed to attach 3/8 in threaded rod to overhead metal decks. It delivers quick, secure installations for industrial racking, mezzanines, and ceiling supports.
✅ Overall length: 1 in (25.4 mm)✅ Anchor diameter: 25/64 in (9.92 mm)
✅ Drill bit size: 25/64 in (9.92 mm)
✅ Thread size: 3/8-16 in (9.525 mm)
✅ Minimum material thickness: 1/8 in (3.175 mm)
✅ Maximum load capacity: 1146 lb (520 kg)
| Dimension | Value |
|---|---|
| Overall Length | 1 in (25.4 mm) |
| Anchor Diameter | 25/64 in (9.92 mm) |
| Drill Bit Size | 25/64 in (9.92 mm) |
| Thread Size | 3/8-16 in (9.525 mm) |
| Minimum Material Thickness | 1/8 in (3.175 mm) |
| Maximum Load | 1146 lb (520 kg) |
💡 What is a screw anchor for threaded rod used for in metal deck installations?
A handy fastener for securing threaded rod to overhead metal decks, common in construction and industrial hangers.
- handy for securing 3/8-16 rod in galvanized steel decks
- reduces need for retainer nuts using X-Press collapsing strips
- offers corrosion resistance with zinc coating
