VCMA-20UL 230V Automatic Condensate Removal Pump For HVAC Refrigeration And Dehumidifiers With No Fuss Install, 80 GPH, 1/30 HP, 60 Hz, 6-Foot Cord, White And Black, Vertical Switch, No Safety Switch Included
✔️ 80 GPH at 1' lift, 1/30 HP, 230V, 6 ft cord, vertical switch
The VCMA-20UL 230V automatic condensate removal pump takes moisture produced by HVAC units, boilers, furnaces, air conditioners and dehumidifiers and moves it away to prevent overflow. Its vertical switch saves space and aids installation in tight areas.

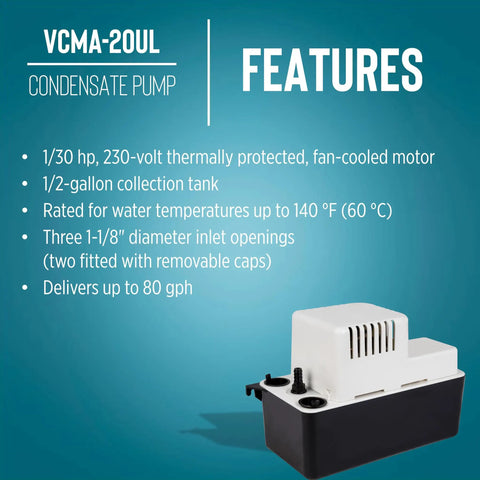

✅ 1/30 HP motor, 230V, 0.5 A, 75 W, 60 Hz, fan-cooled; thermal overload protection

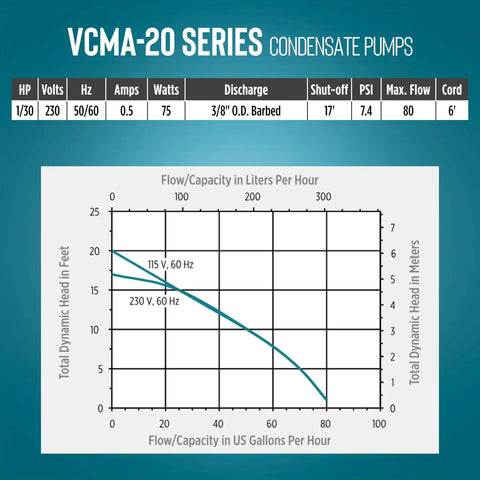

✅ 80 GPH at 1' lift; 17' shut-off; max 7.4 psi

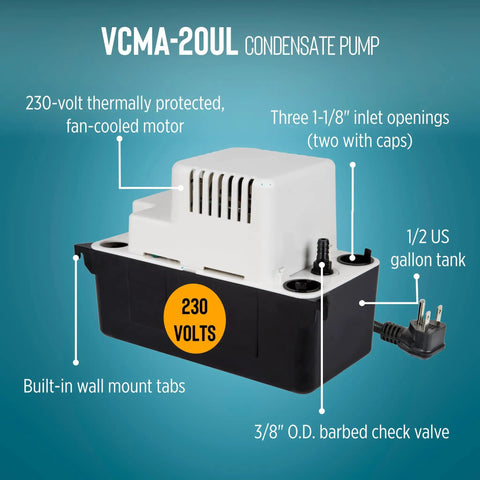

✅ 3/8" OD barbed discharge with built-in check valve; three 1-1/8" inlet openings
✅ 1/2-gallon condensate holding tank included
✅ ABS tank, motor cover and volute; stainless steel motor shaft

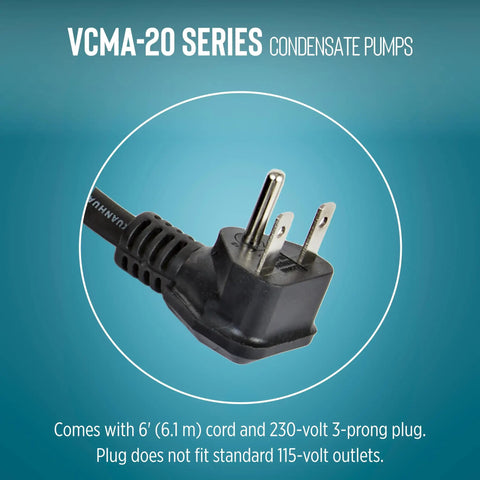

✅ 6' cord with 230V 3-prong plug; plug not compatible with 115V outlets
✅ CSA certified to US and Canadian standards
✅ No overflow detection switch included
✅ Color: Black/White
💡 What is a typical use case for a condensate removal pump in HVAC and refrigeration systems?
These handy pumps keep condensate from causing overflow in tight spaces. - condensate removal from HVAC units, dehumidifiers, boilers- handy in spaces where gravity drainage is hard or impossible
- 80 GPH performance and 230V operation help protect equipment
- CSA certification and thermal protection offer peace of mind
