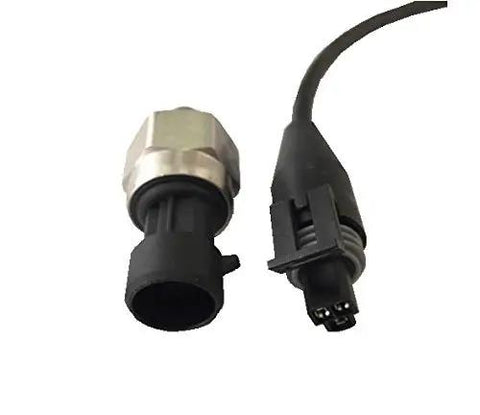

Vacuum To Pressure Transducer With 0.5V To 4.5V Output -14.5 Psi To 30 Psi Range 316 Stainless Steel Body 1/8 Inch NPT Pigtail Wire Harness Included Boost Sender Sensor For Automotive And Industrial Use

Vacuum to pressure transducer, 0.5 to 4.5V, 316 SS (single)
✔️ Input -14.5 to 30 psi, output 0.5 to 4.5V, 1/8 in NPT, 316 SS

This vacuum to pressure transducer converts negative and positive pressure into a linear electrical signal. With a robust 316 stainless steel body and 1/8 in NPT threads, it's ideal for automotive boost sensing and industrial pressure monitoring of oil, fuel, water, or air lines.

✅ Range: -14.5 to 30 psi

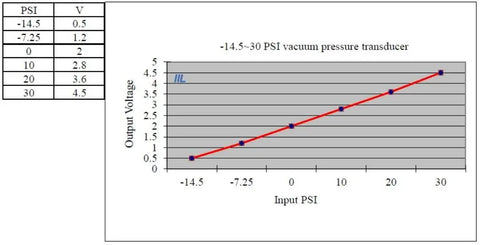

✅ Output: 0.5 to 4.5V linear
✅ Thread: 1/8 in NPT
✅ Material: 316 stainless steel
✅ Harness: pigtail included (red +12V, black ground, blue signal)
✅ Accuracy: within 1.5% FS
✅ Current draw: less than 4 mA
✅ Burst pressure: min 100 psi
✅ Sensor: ceramic pressure chip sensor
✅ Wiring: water sealed quick disconnect connector included

💡 What is a vacuum to pressure transducer used for in automotive and industrial systems? This handy device helps monitor pressure changes and deliver a 0.5 to 4.5V signal.

- Applications include boost pressure sensing for engines and vacuum systems
- Used with automotive ECUs, data loggers, or control systems
- Durable 316 stainless steel body and ceramic sensing element for harsh environments
